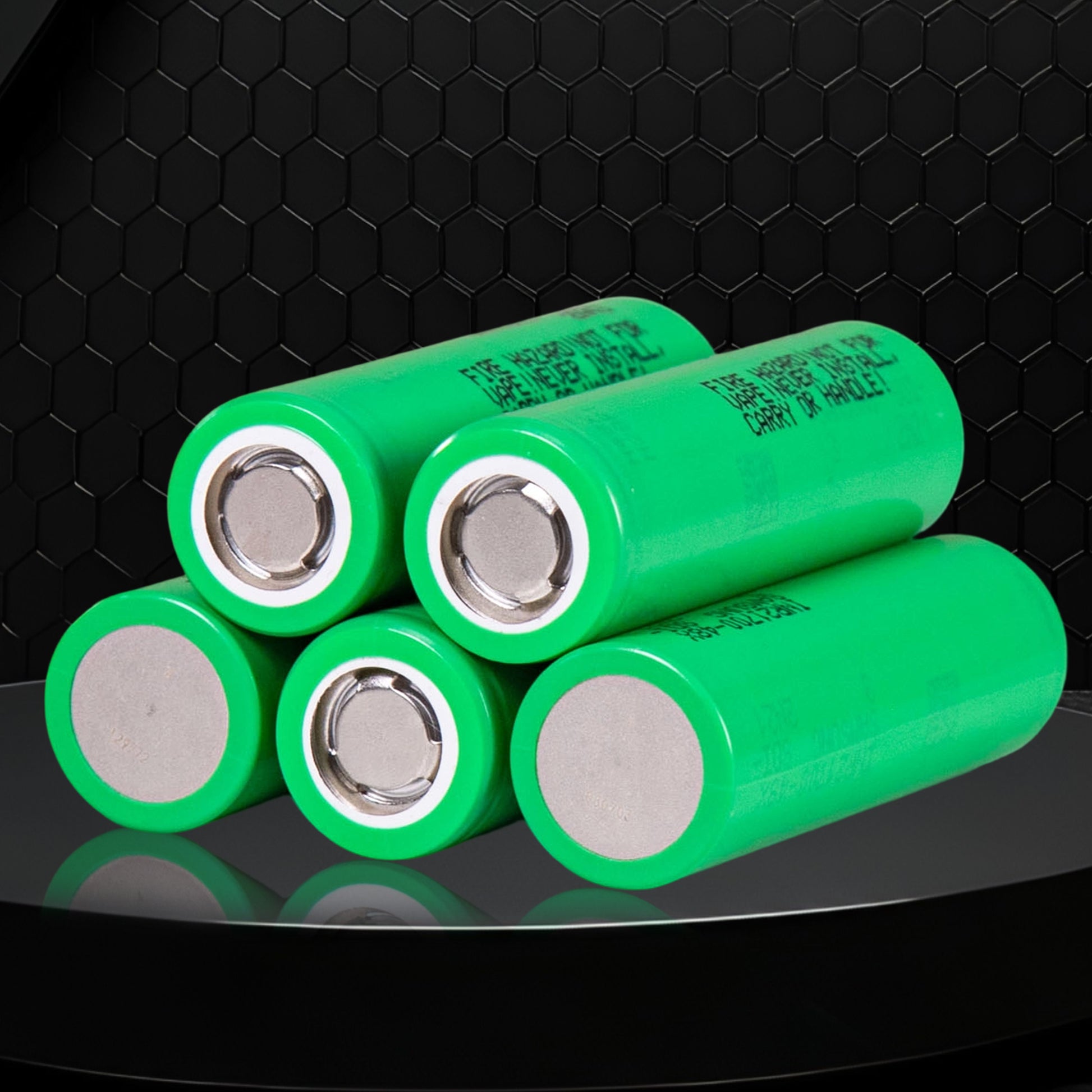

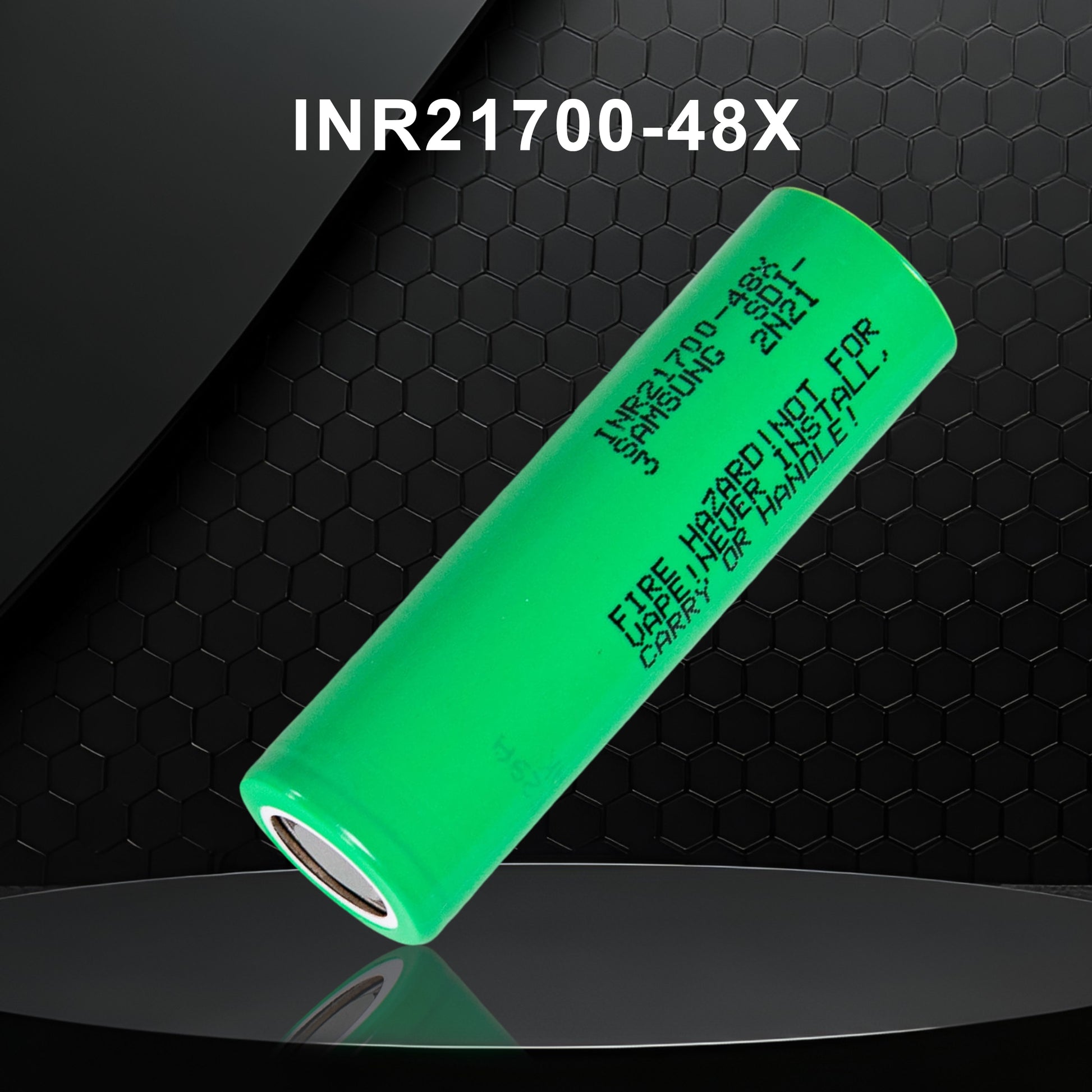

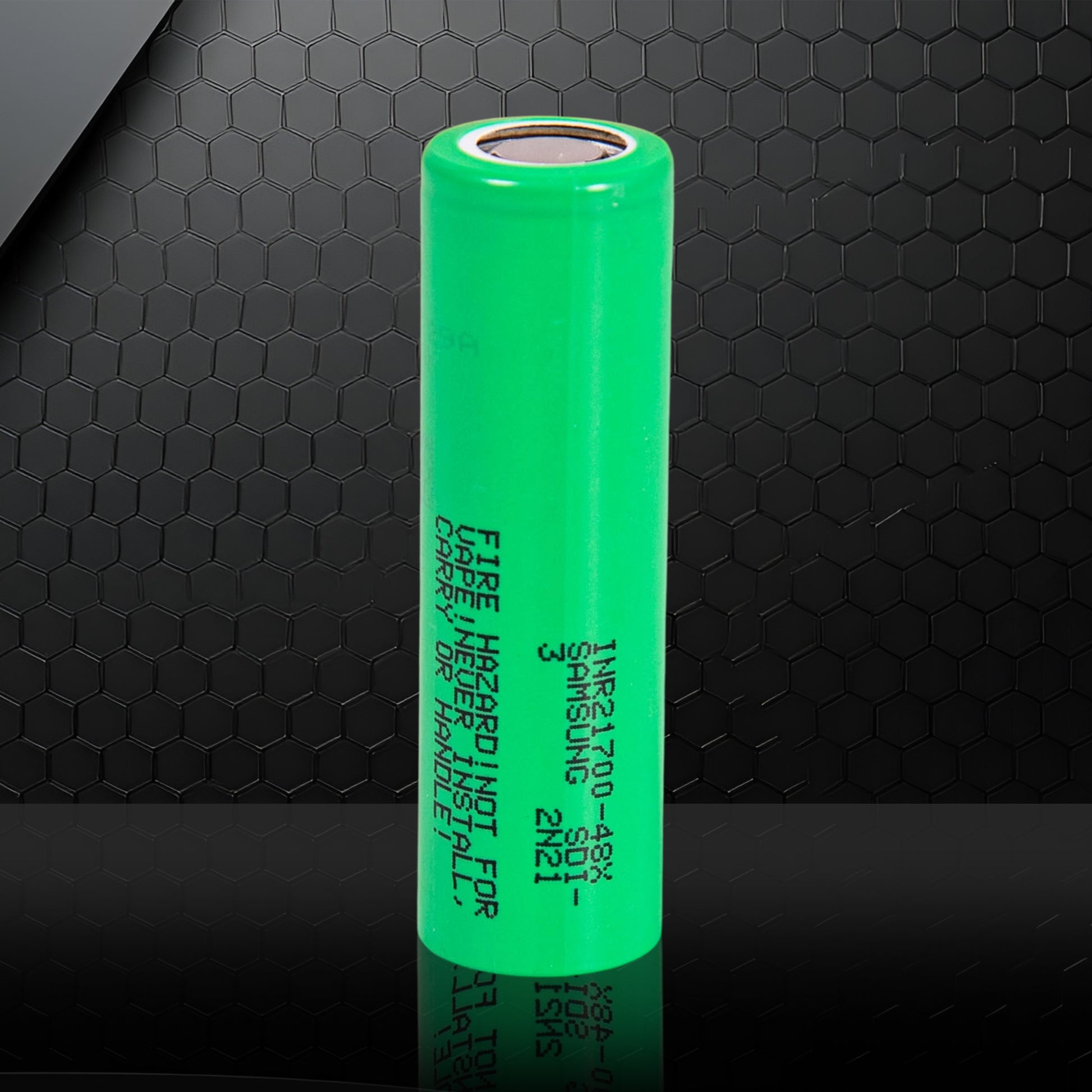

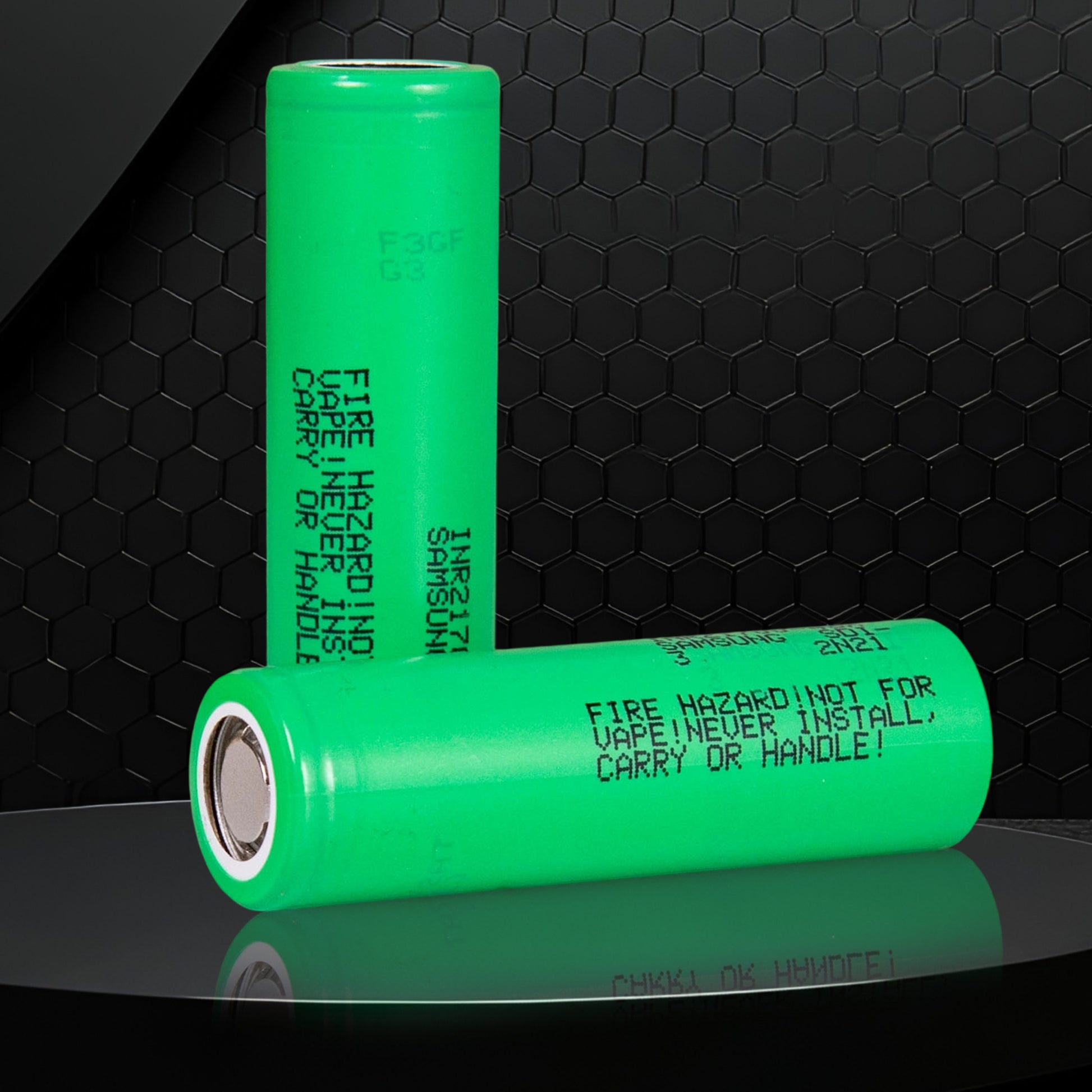

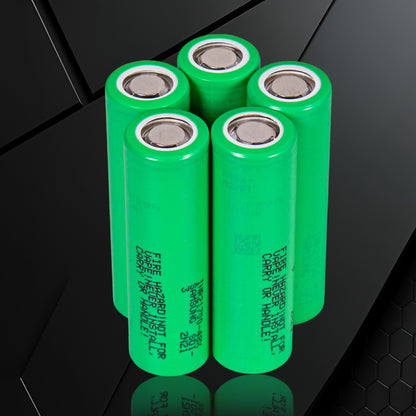

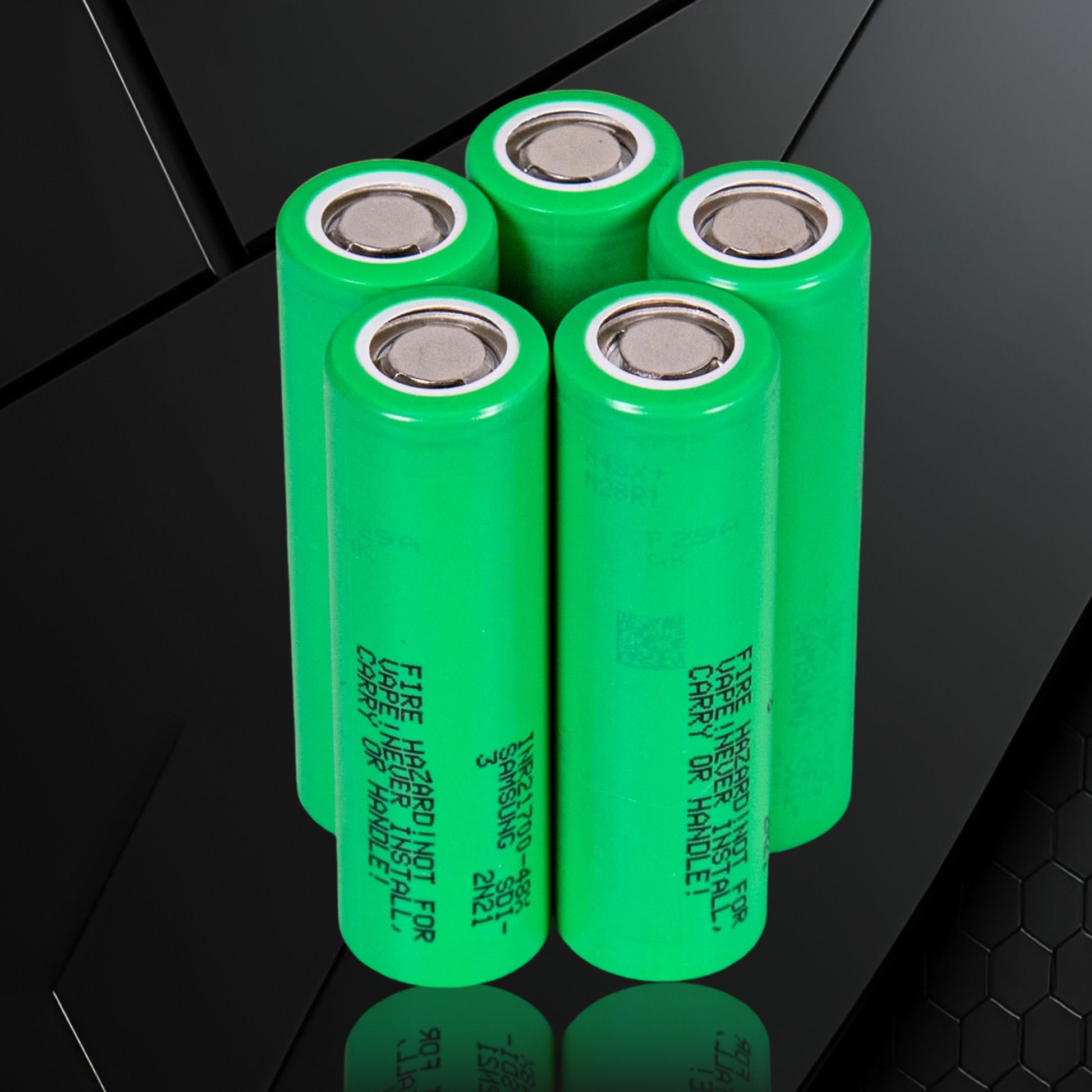

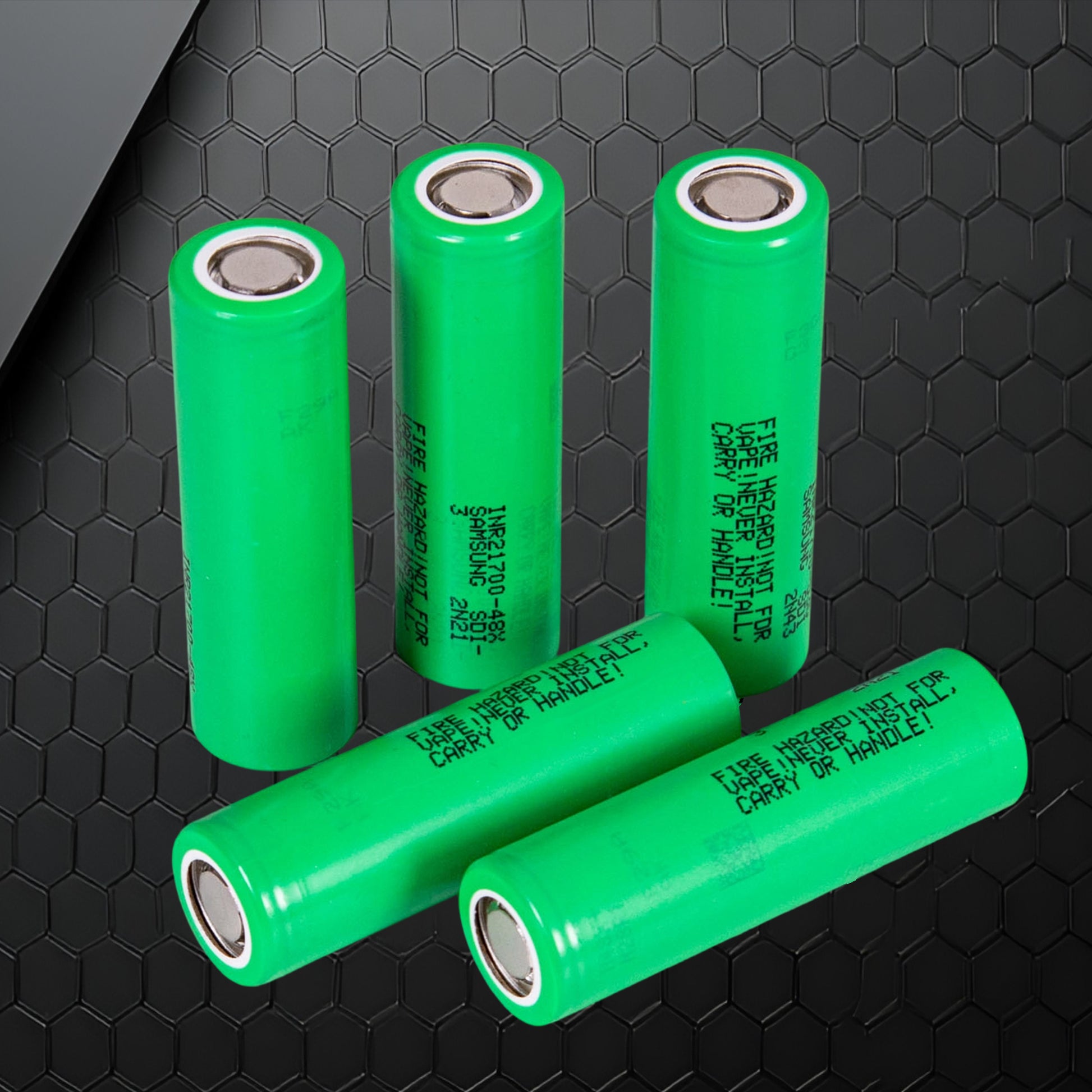

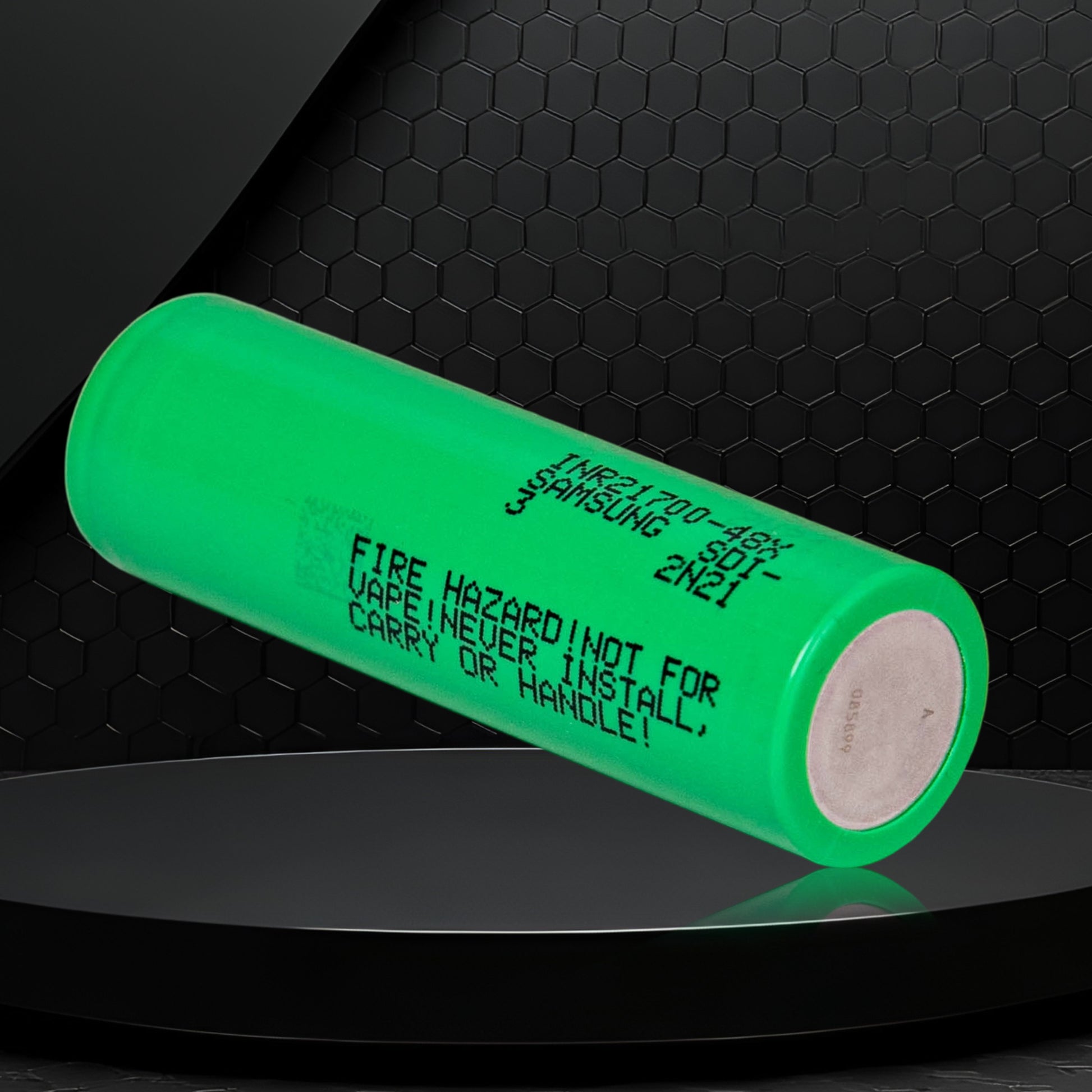

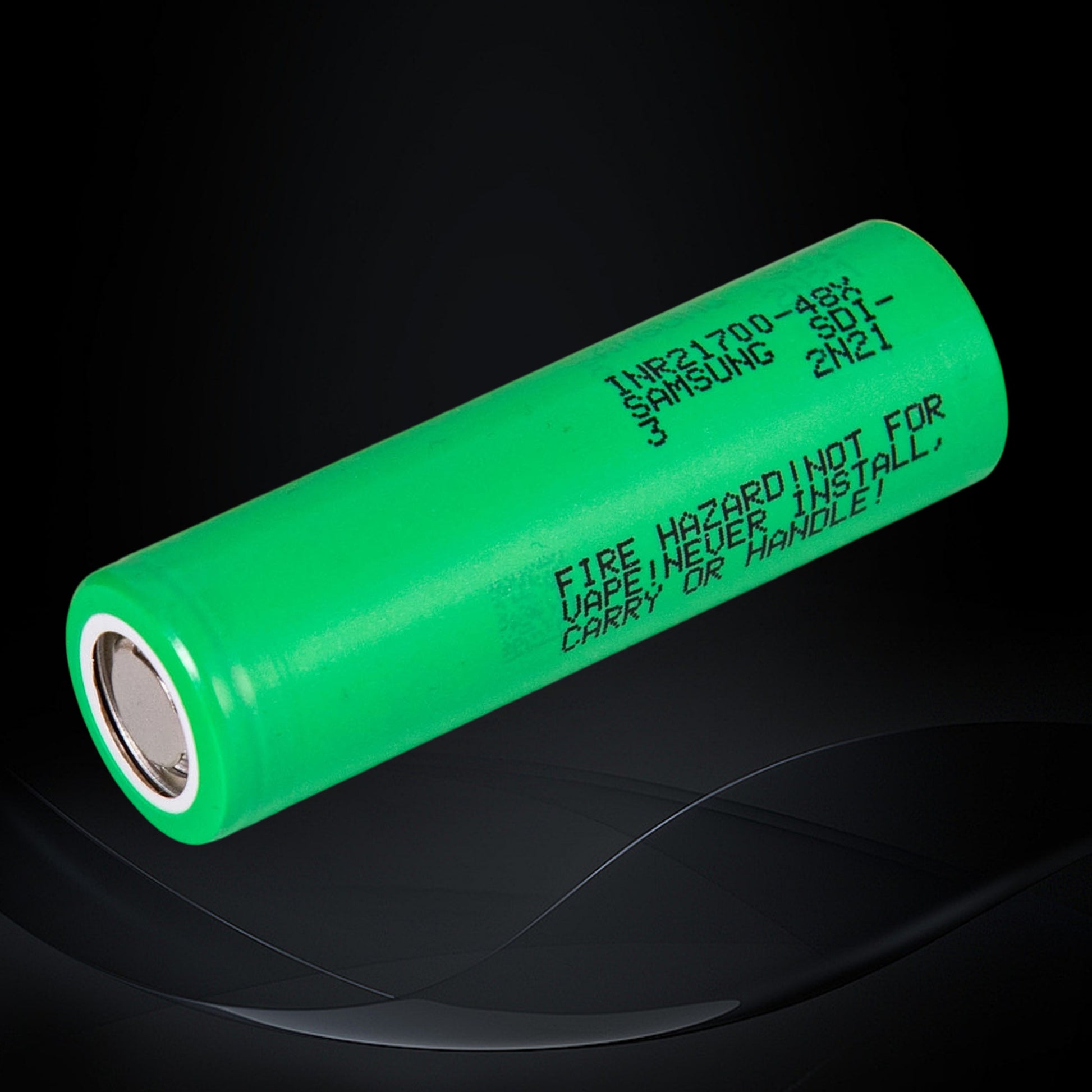

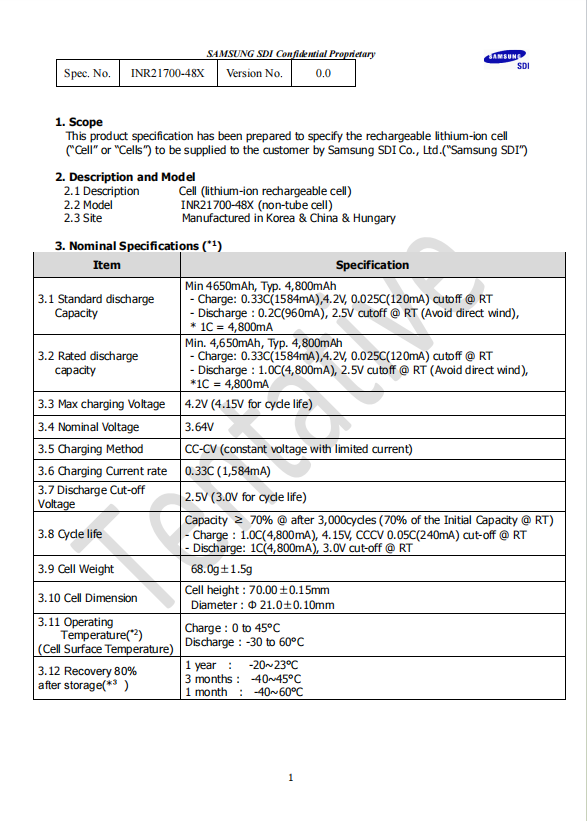

Cell Type: Lithium-ion rechargeable cylindrical cell (21700 format) Nominal Voltage: 3.64 V Typical Capacity: 4,800 mAh (Min. 4,650 mAh) Dimensions: Diameter approx. 21.15 mm, Height approx. 70.65 mm Weight: Max approx. 69.5 g
Max Charging Voltage: 4.20 V (4.15 V for extended cycle-life variant) Discharge Cut-off Voltage: 2.5 V (3.0 V for extended cycle-life) Standard Charge Current: ~0.33 C (≈1,584 mA) Max Continuous Discharge Current: Up to ~9.6 A (approx. 2 C) in standard use Operating Temperature Range:
High Energy Capacity: Typical capacity about 4,800 mAh, with a standard discharge capacity of 4,650 mAh. Nominal Voltage: ~3.64 V.
Good Discharge Performance: Maintains 100% capacity at up to 1 C (4,800 mA); at 1.5 C (~7,200 mA) it retains ~85%, and at 2 C (~9,600 mA) it retains ~80%.
Long Cycle Life:
Cycle Life 1: ≥ 70% capacity after 500 cycles (4.20 V ↔ 2.50 V). Cycle Life 2: ≥ 70% capacity after 1,500 cycles (4.15 V ↔ 3.00 V).
Excellent Storage Recovery: After 28 days at room temperature, the cell recovers ≥ 90% of its capacity.
Low Internal Resistance: ≤ 18 mΩ (AC, after standard charge), which helps reduce energy loss and improve efficiency.
Wide Temperature Range: Charge: 0 °C to 45 °C. Discharge: –20 °C to 60 °C.
Robust Safety & Certification: Complies with UN38.3 for transport safety per spec sheet.
Compact & Durable Design: Weighs up to 69.5 g, with a cell height of ~70.80 mm and diameter ~21.25 mm.
