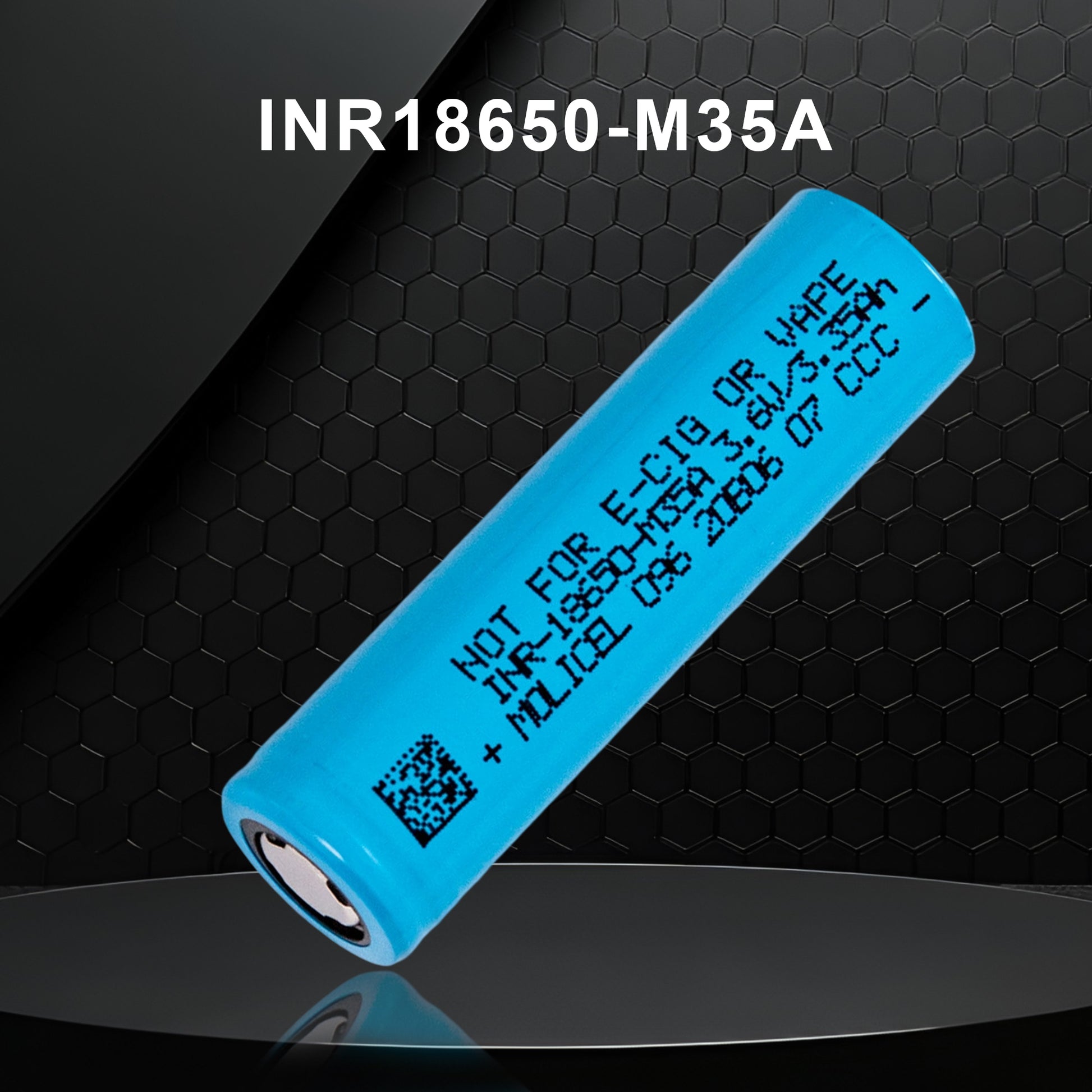

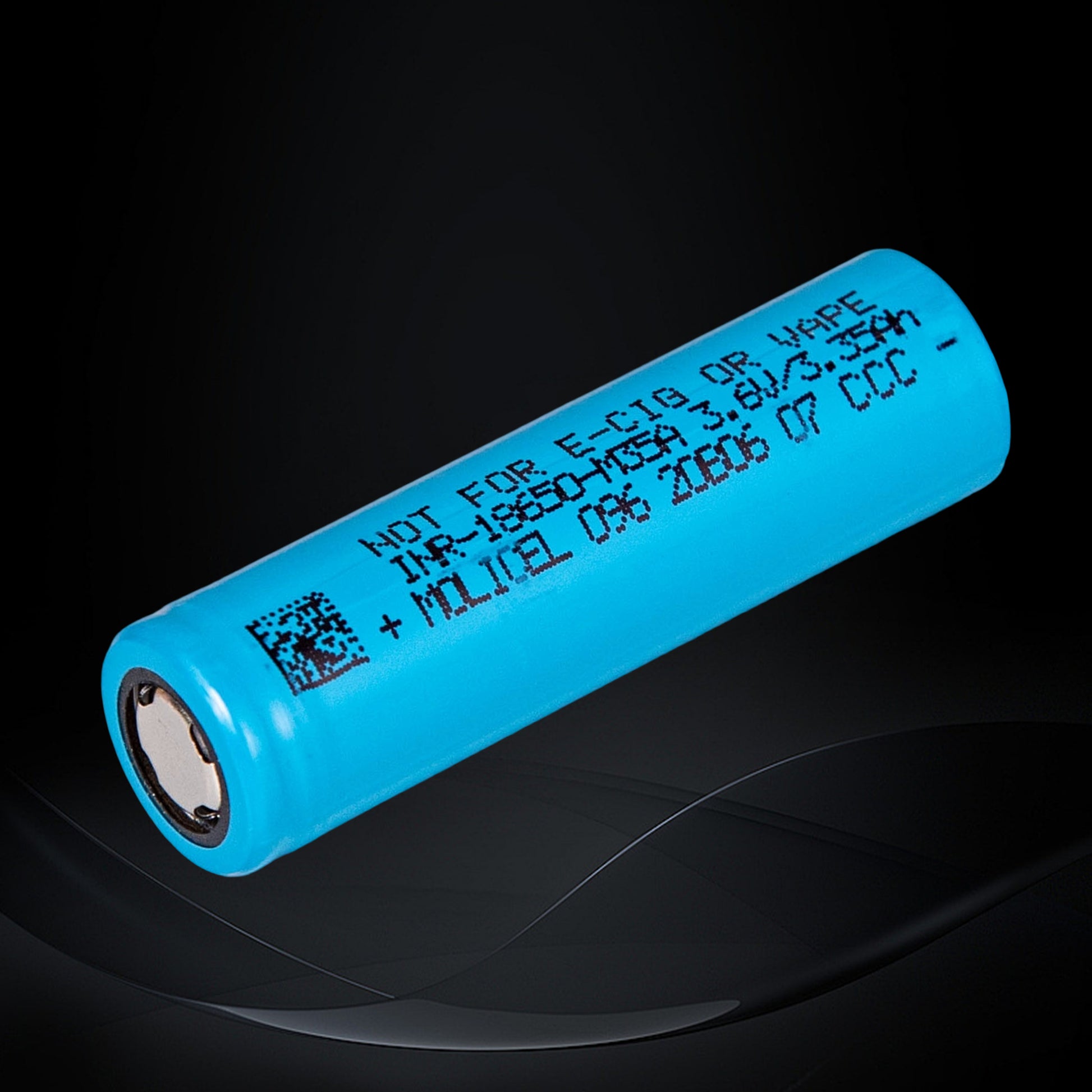

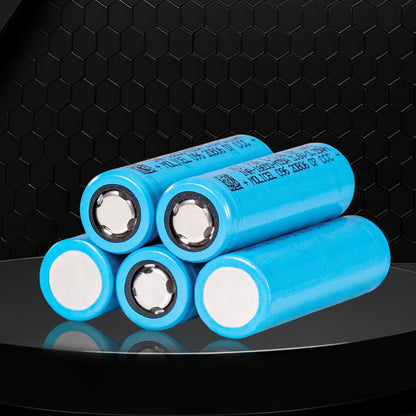

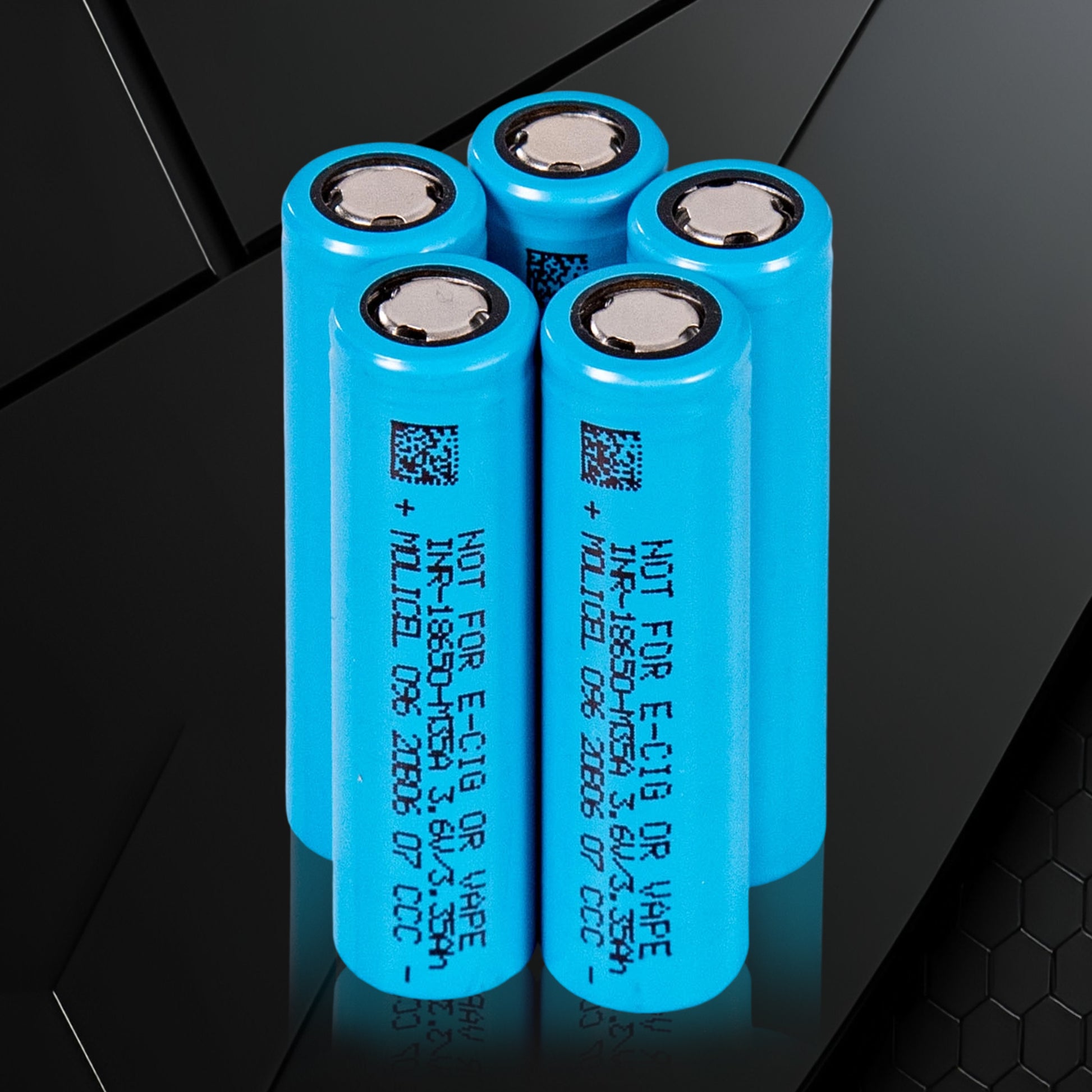

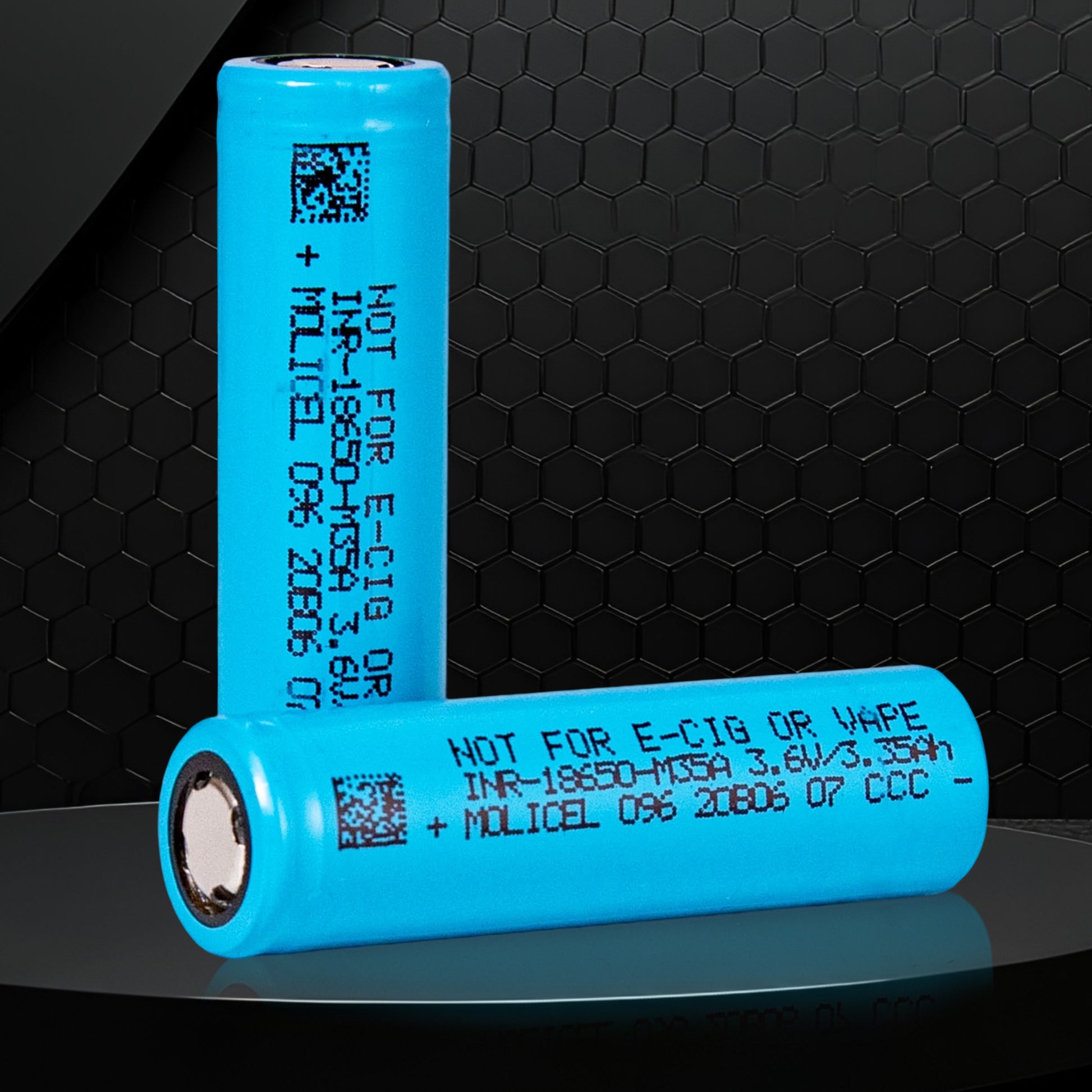

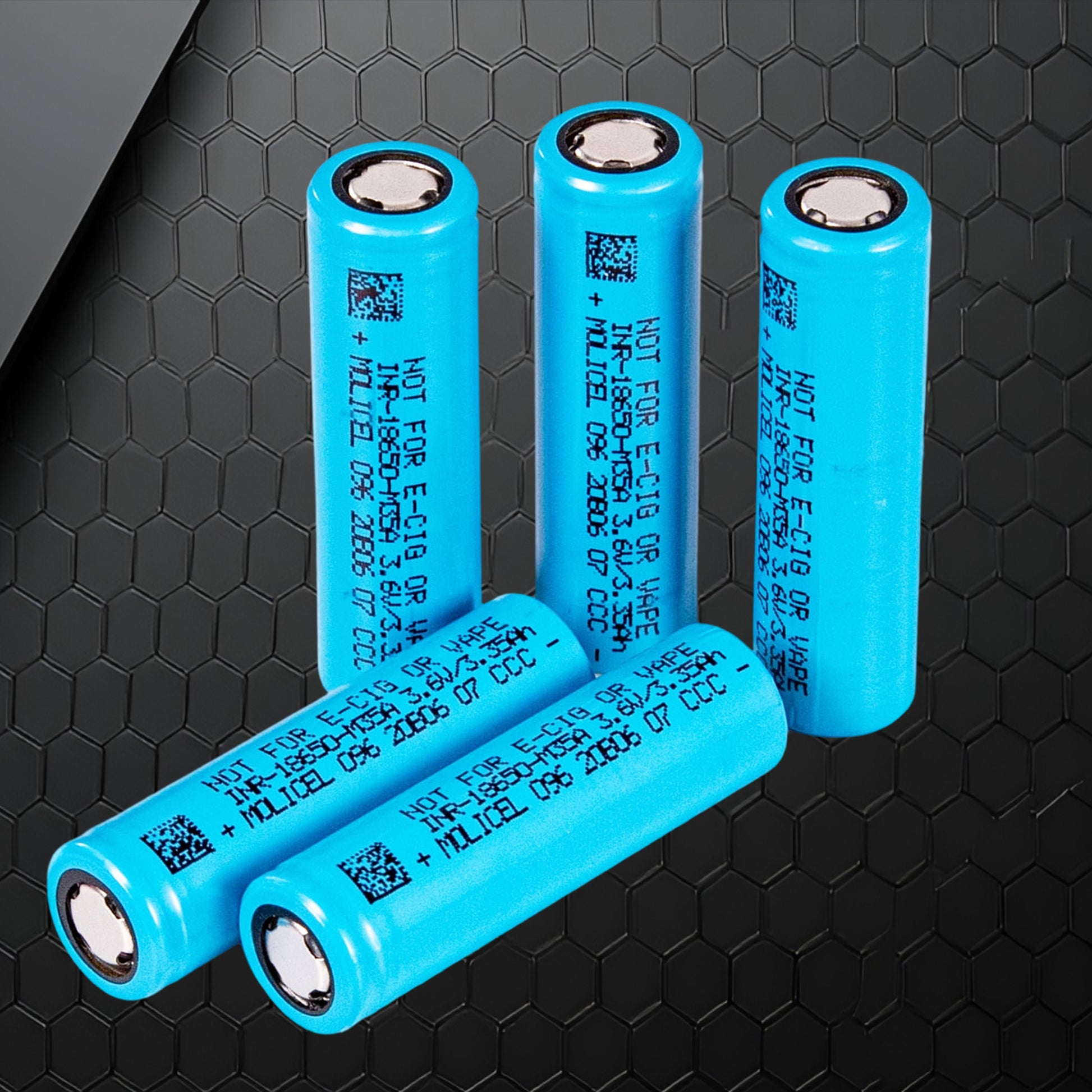

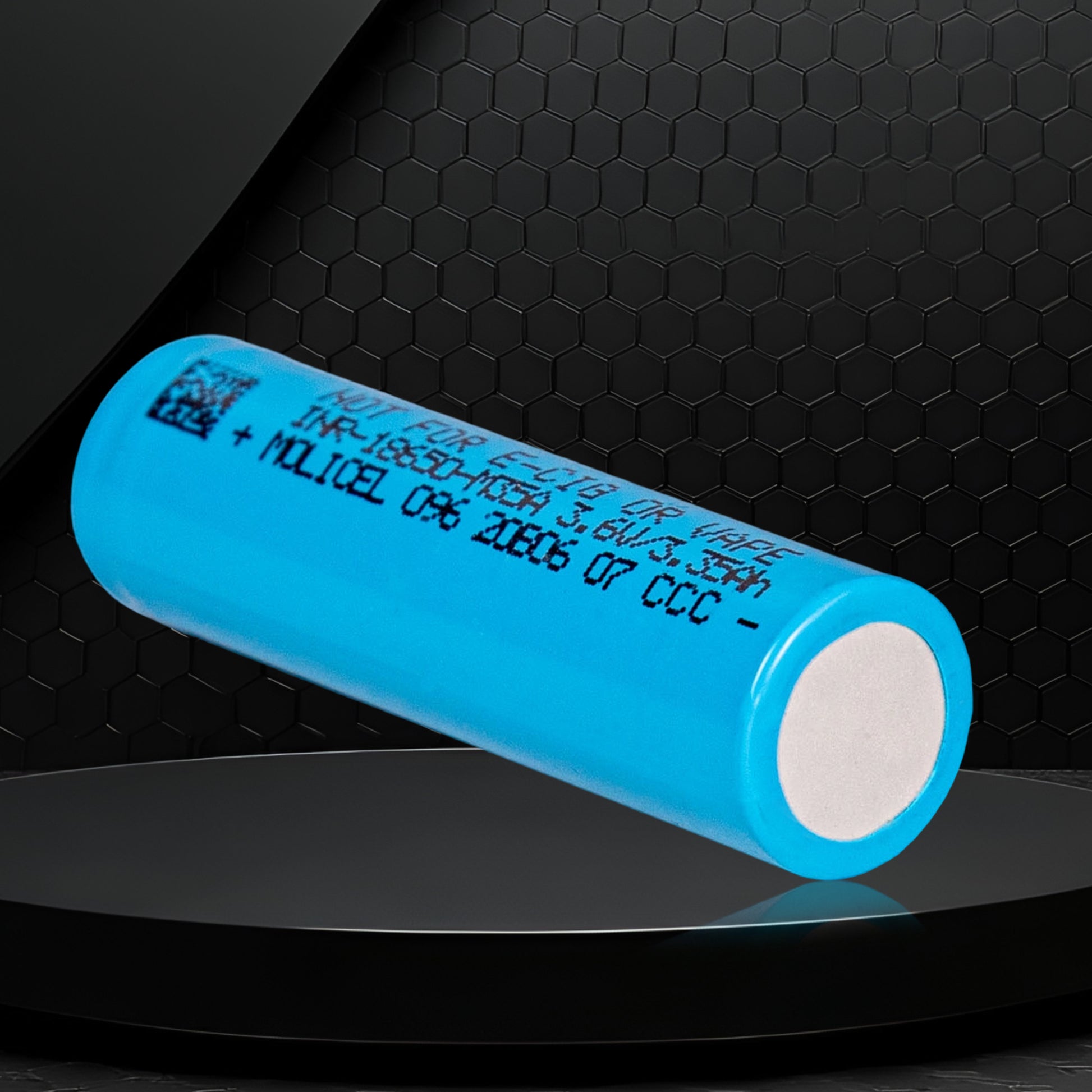

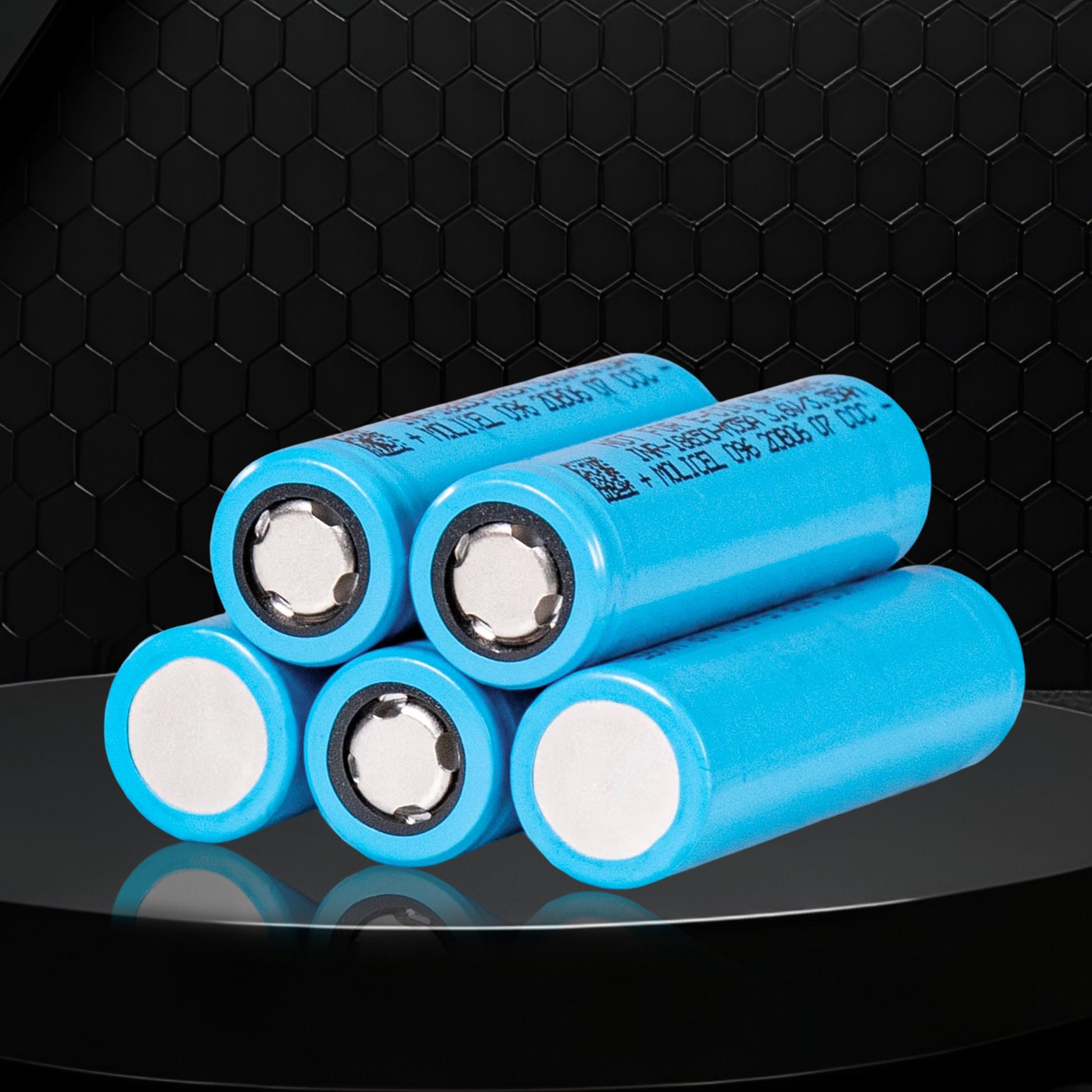

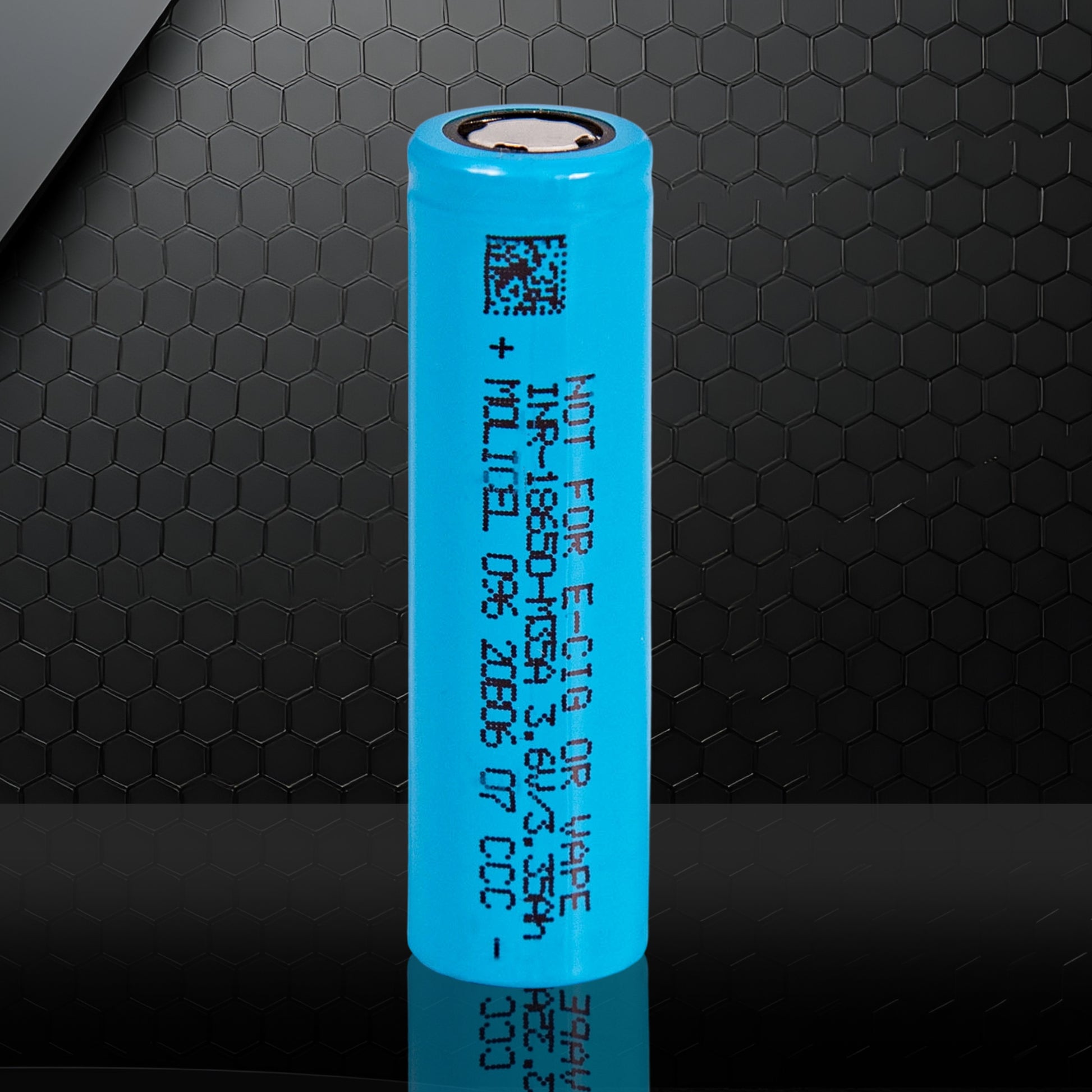

Molicel INR18650-M35A

Molicel INR18650-M35A

Technical Specifications

Nominal Voltage: 3.60 V
Typical Capacity: ~3,450 mAh (Minimum ~3,350 mAh)
Dimensions: Diameter ~18.30 mm ±0.30 mm × Height ~65.05 mm ±0.15 mm
Weight (Max): ~48 g

Max Charge Voltage / Cut-off: 4.20 V ± 0.05 V
Discharge Cut-off Voltage: ~2.50 V
Max Continuous Discharge Current: ~10 A
Operating Temperature Range:

Charge: 0 °C to 60 °C

Discharge: -40 °C to 60 °C

View full details

Key Performance Highlights

  • High Capacity: Typical capacity ~3,500 mAh, minimum ~3,350 mAh.
  • Moderate Discharge Capability: Rated continuous discharge current of 10 A.
  • Nominal Voltage: 3.6 V, with charge termination at 4.2 V and discharge cutoff at 2.5 V.
  • Robust Energy Density: High volumetric energy density (~730 Wh/L) and gravimetric (~264 Wh/kg).
  • Low Weight / Compact Size: Cylinder 18650 form, ~48 g weight.
  • Wide Temperature Range: Charge: 0°C to 60°C; Discharge: –40°C to 60°C.
  • Reliable Chemistry + Stability: Molicel INR chemistry delivers stable performance and good cycle behavior per lab testing.
Get a Quote

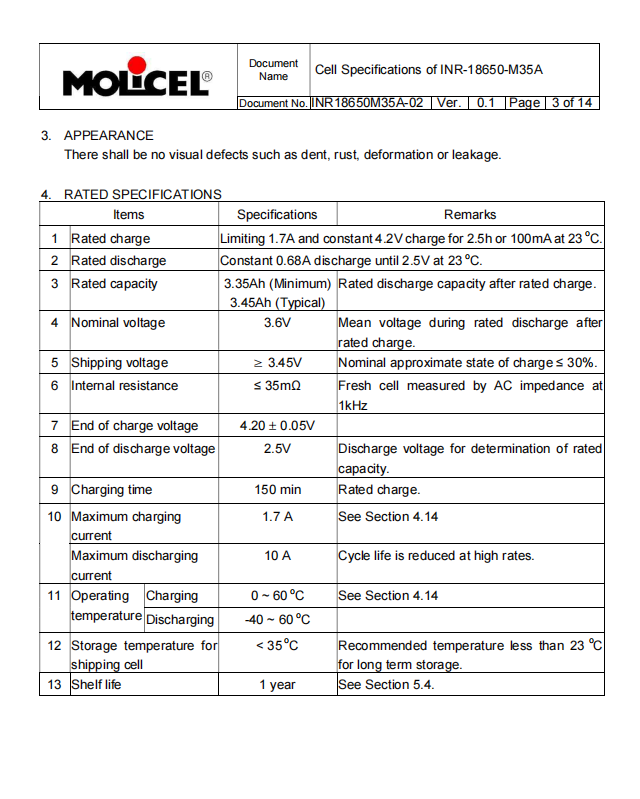

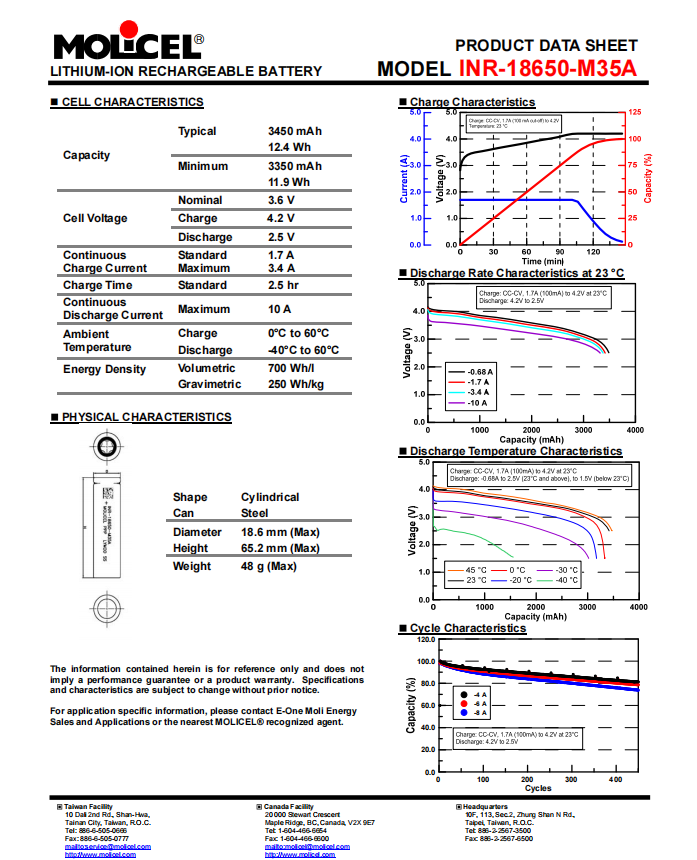

Factory Direct Supply-Guarantee 100% Genuine Cells And Better Price Molicel INR18650 M35A battery cell specification

Get a Quote

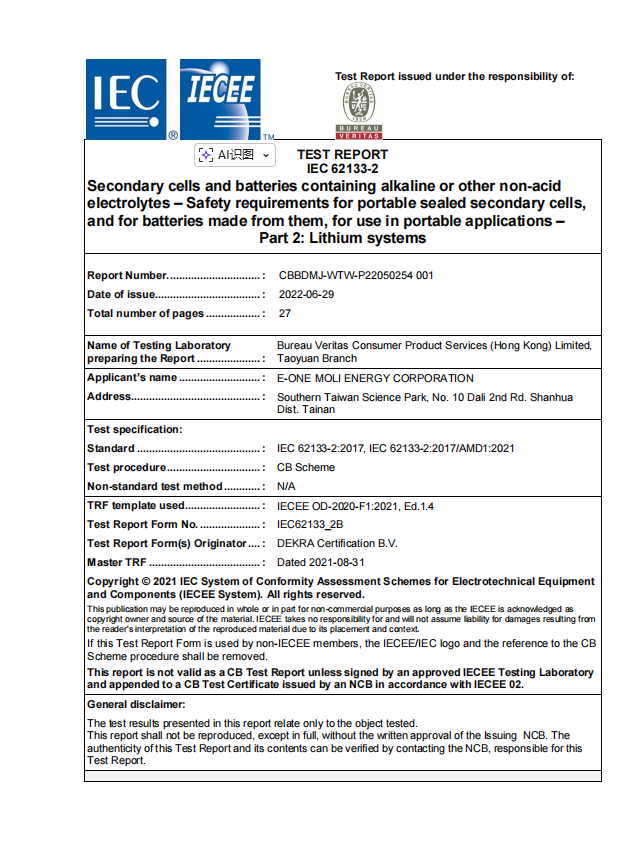

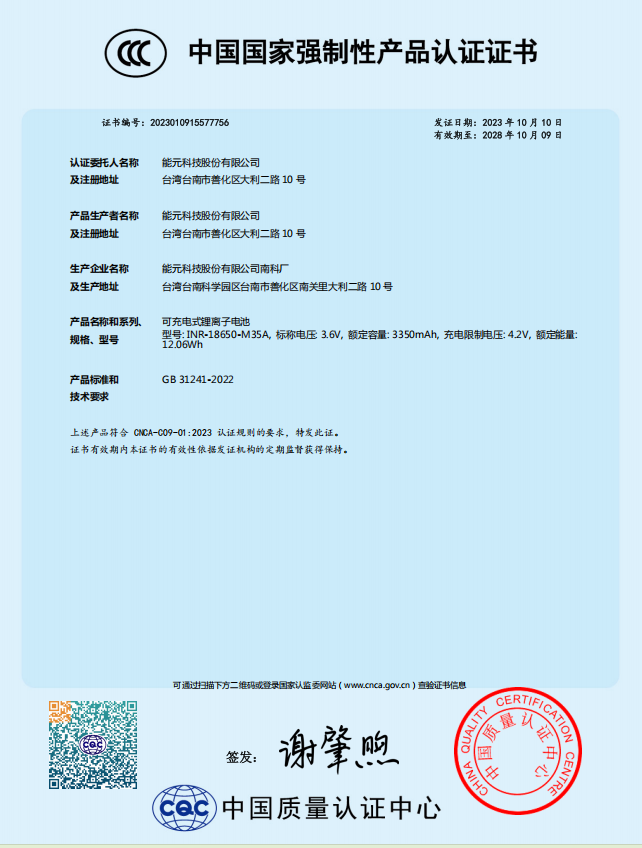

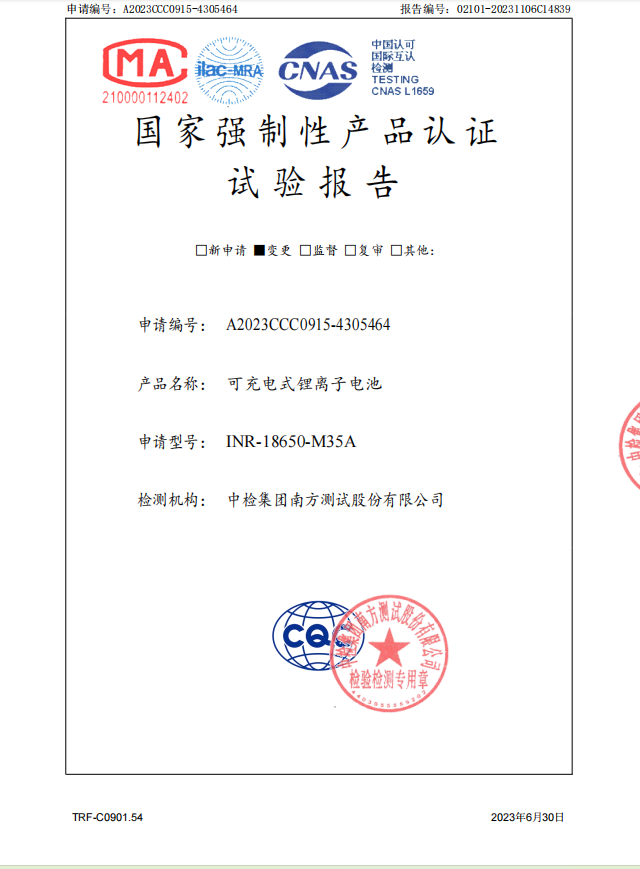

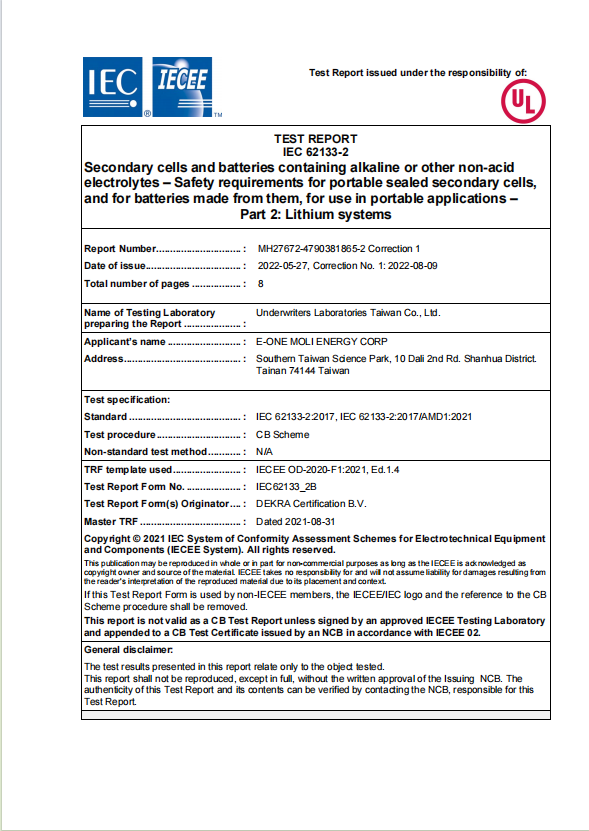

INR18650-M35A certificatesMSDS, UN38.3, UL, CB, IEC62133, BIS, etc.

Get a Quote

Frequently Asked Questions

What is the expected cycle life?

  • According to third-party sources (Tenergy), the cell can support ~500 cycles.
  • In practice, for B2B designs, you should balance cycle profile with discharge current to maximize longevity.

What protection / BMS design is recommended?

  • Use a BMS with over-current protection — since the cell supports 10 A discharge.
  • Include voltage cutoffs: set over-voltage at 4.2 V and under-voltage at ~2.5 V to protect cell life.
  • Because of the wide temperature range (–40 °C to 60 °C), thermal-management or temperature sensing is advisable in the pack.

What competitor cells might be comparable?

  • The M35A competes in the “high-capacity, moderate-discharge” space — similar to Samsung 35E but with a higher discharge current.
  • Depending on the application priority (power vs. capacity), consider cells like Molicel P30B / P28A for higher current, or high-capacity cells for lower-current use-cases.

What packaging / mechanical design considerations should be made?

  • Given its 18650 form factor and standard dimensions, it’s compatible with common 18650 cell holders/modules.
  • Ensure cell matching (voltage / IR) during pack assembly to prevent imbalance, especially in mult-cell packs.
