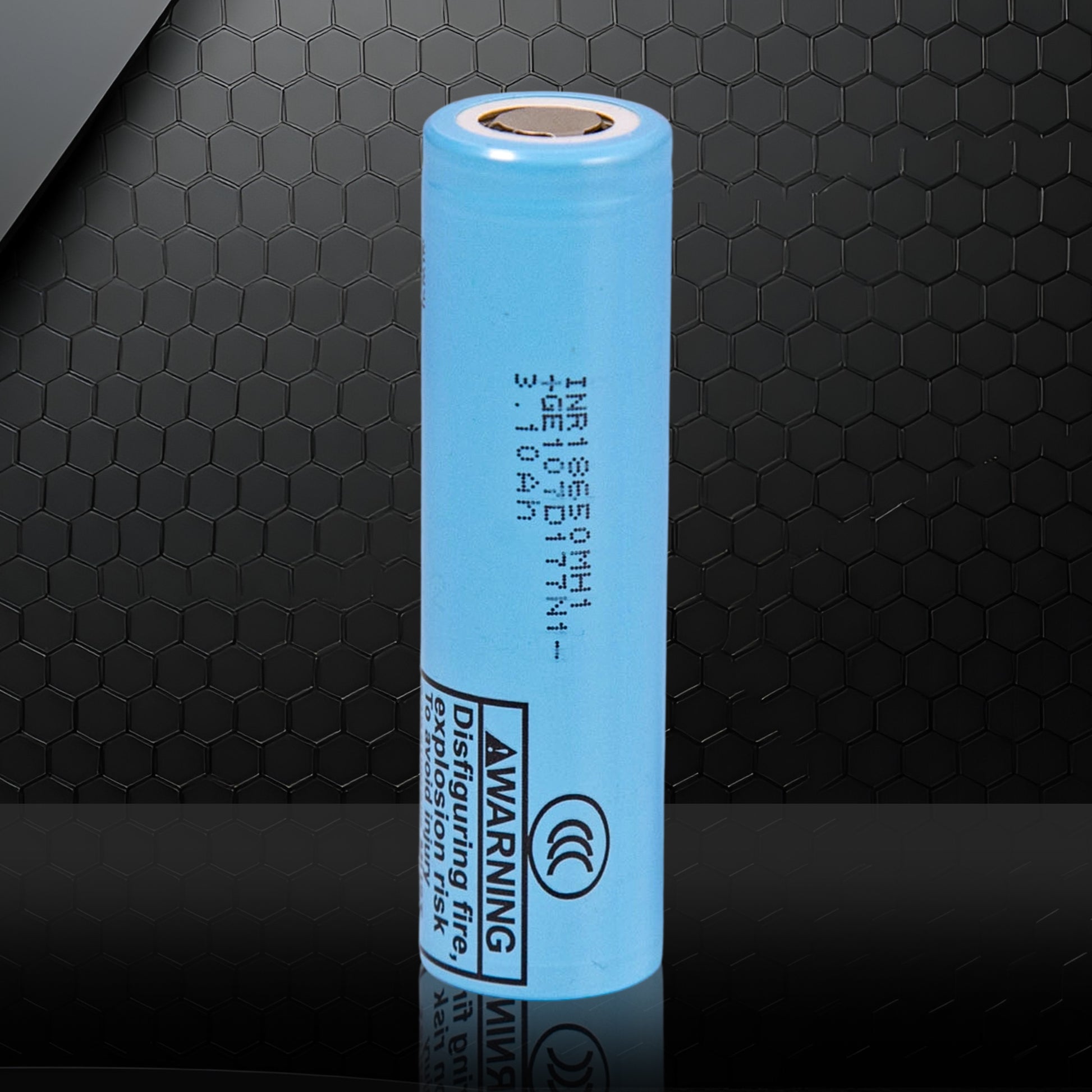

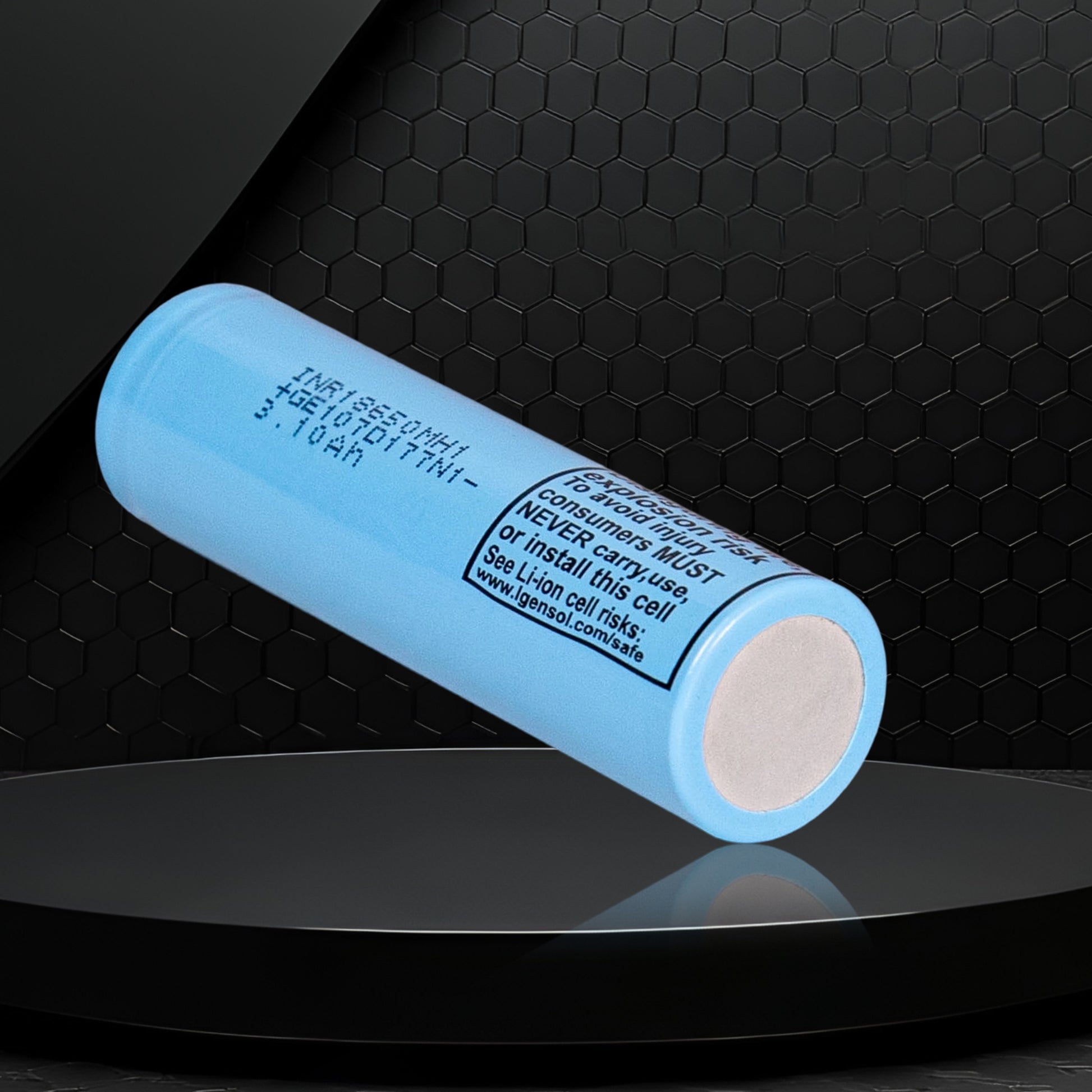

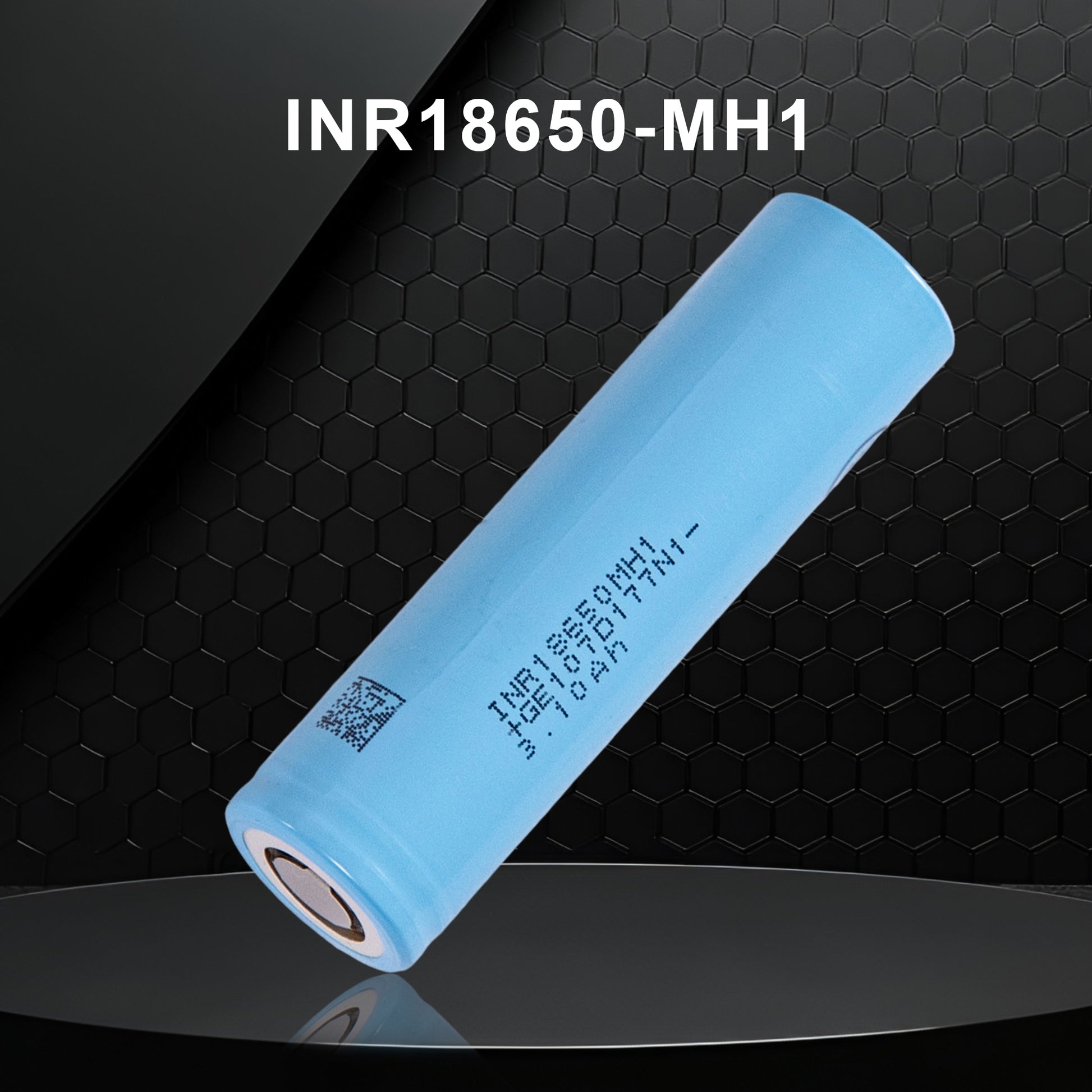

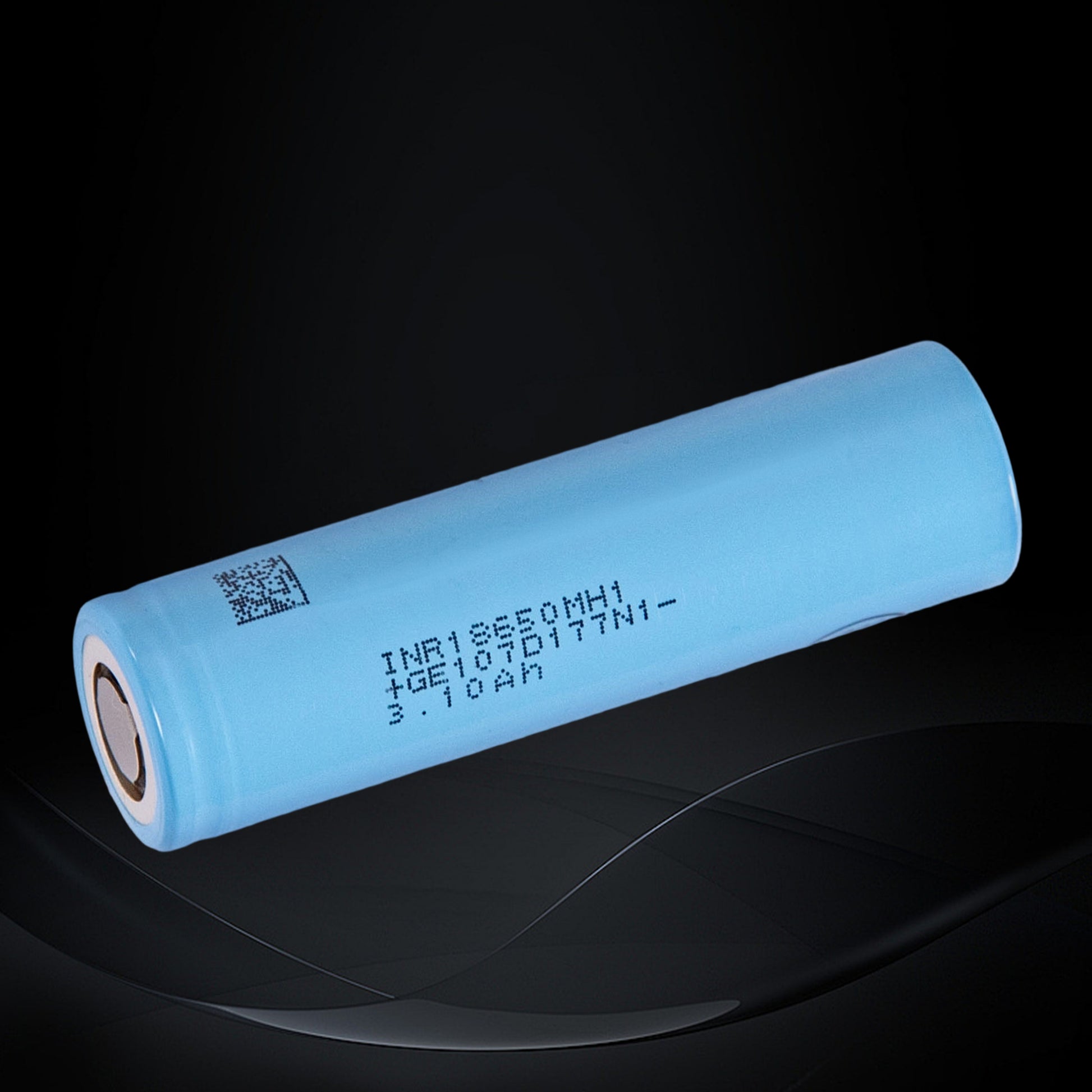

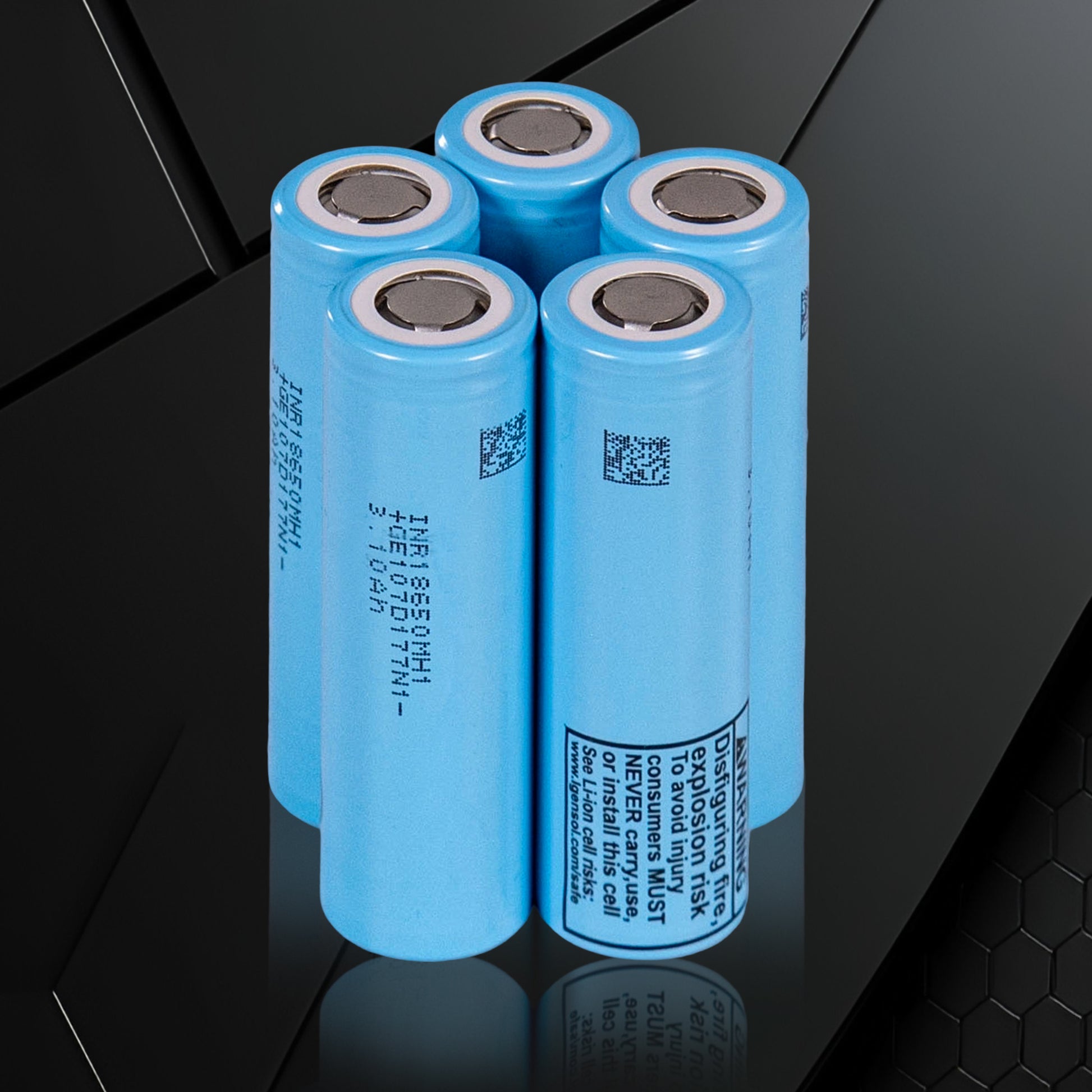

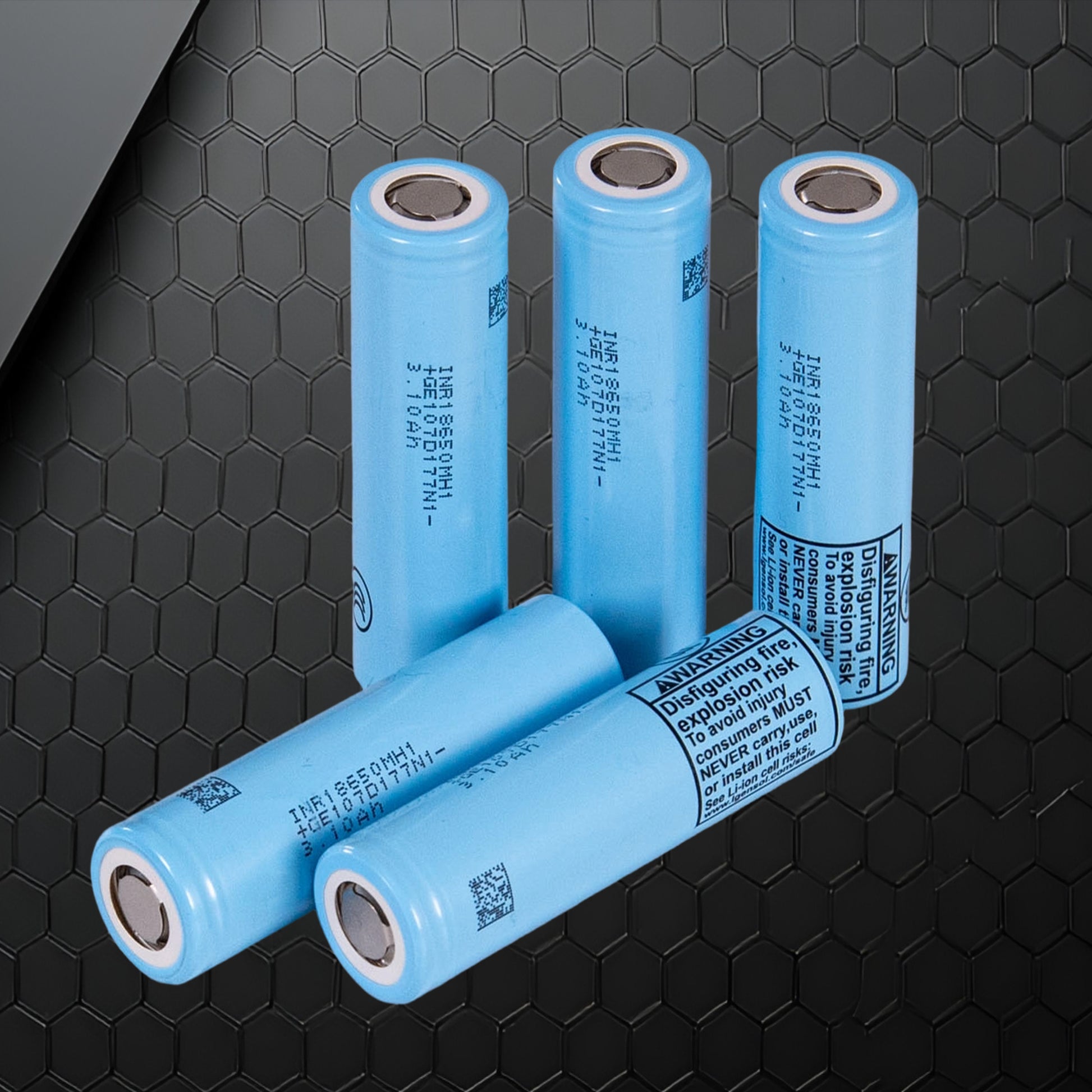

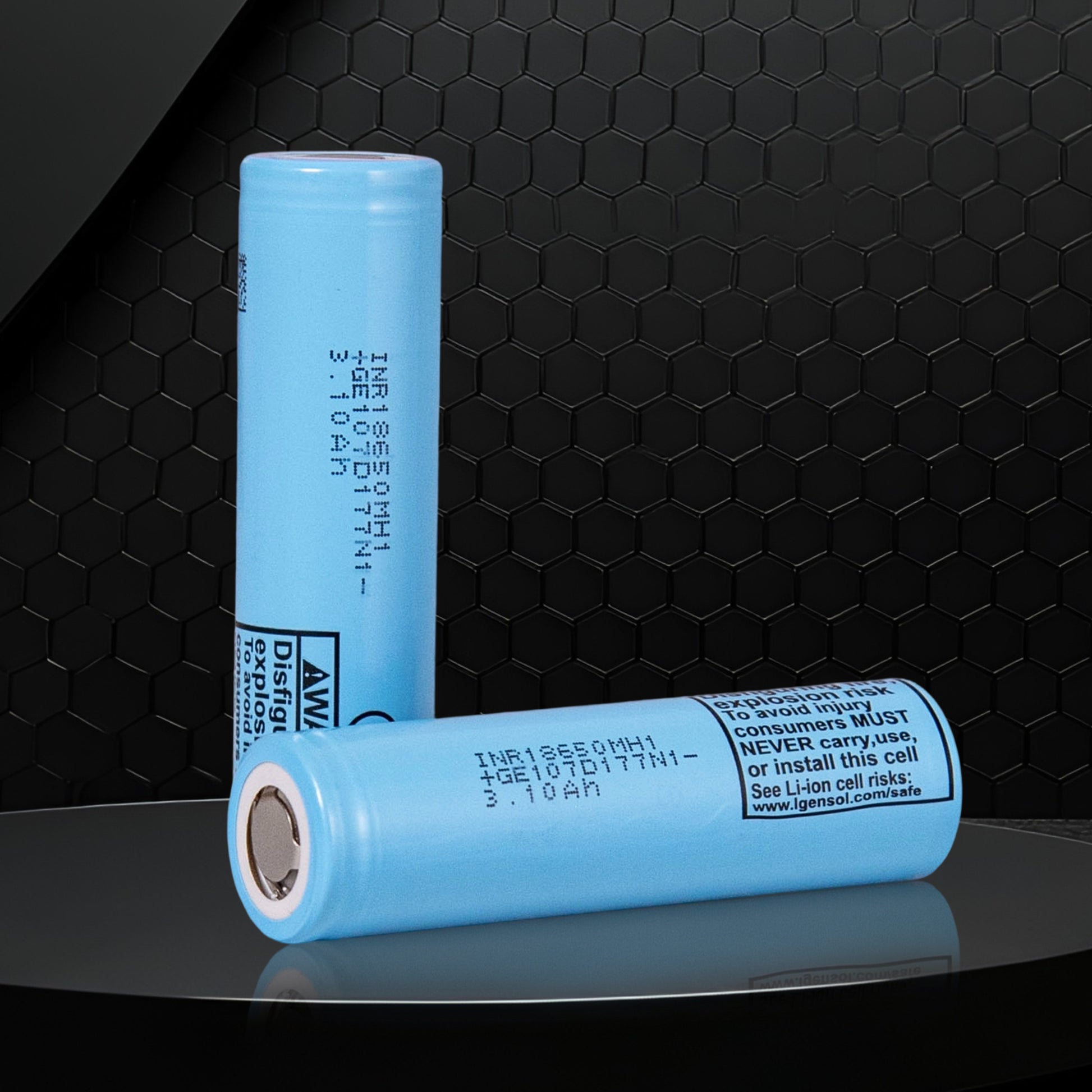

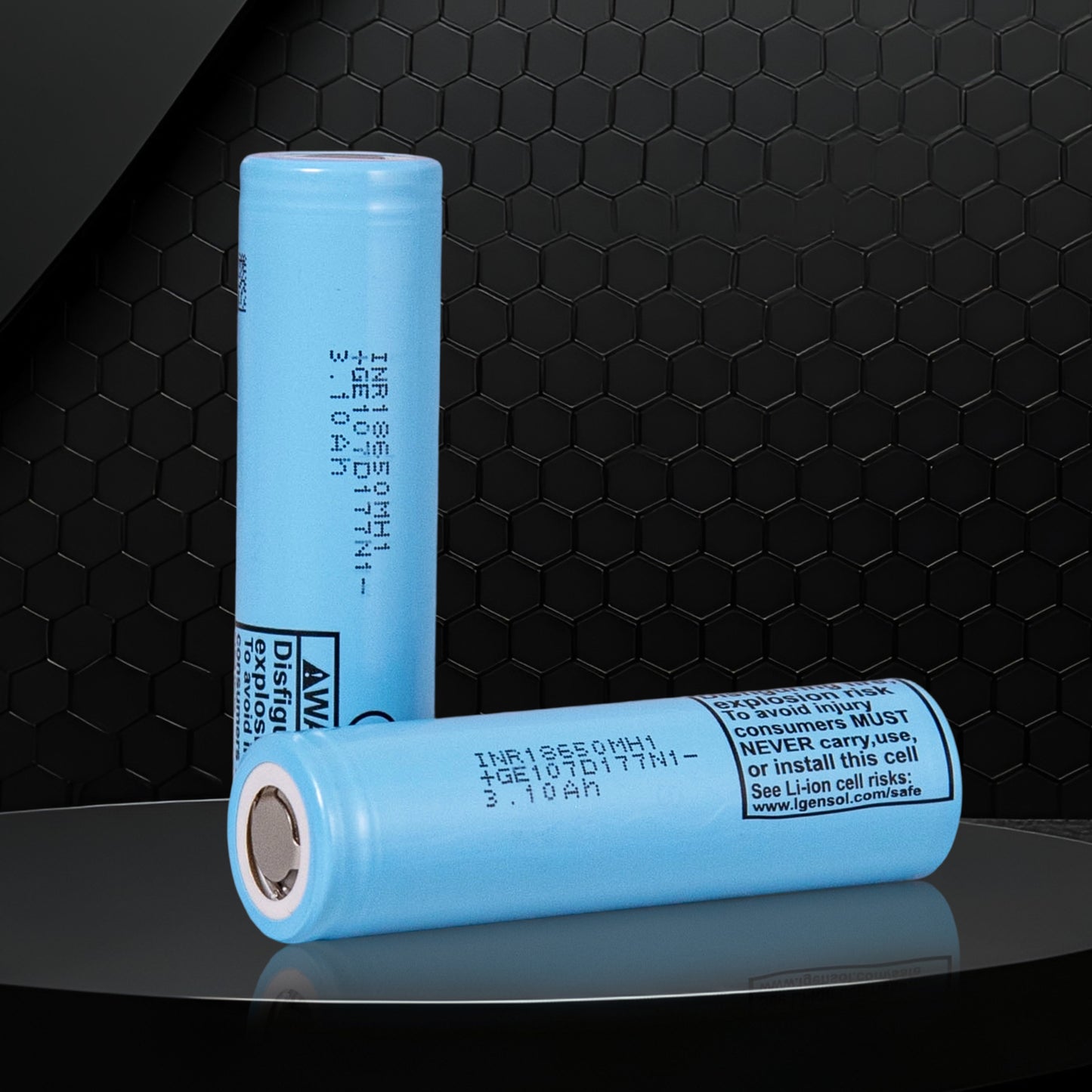

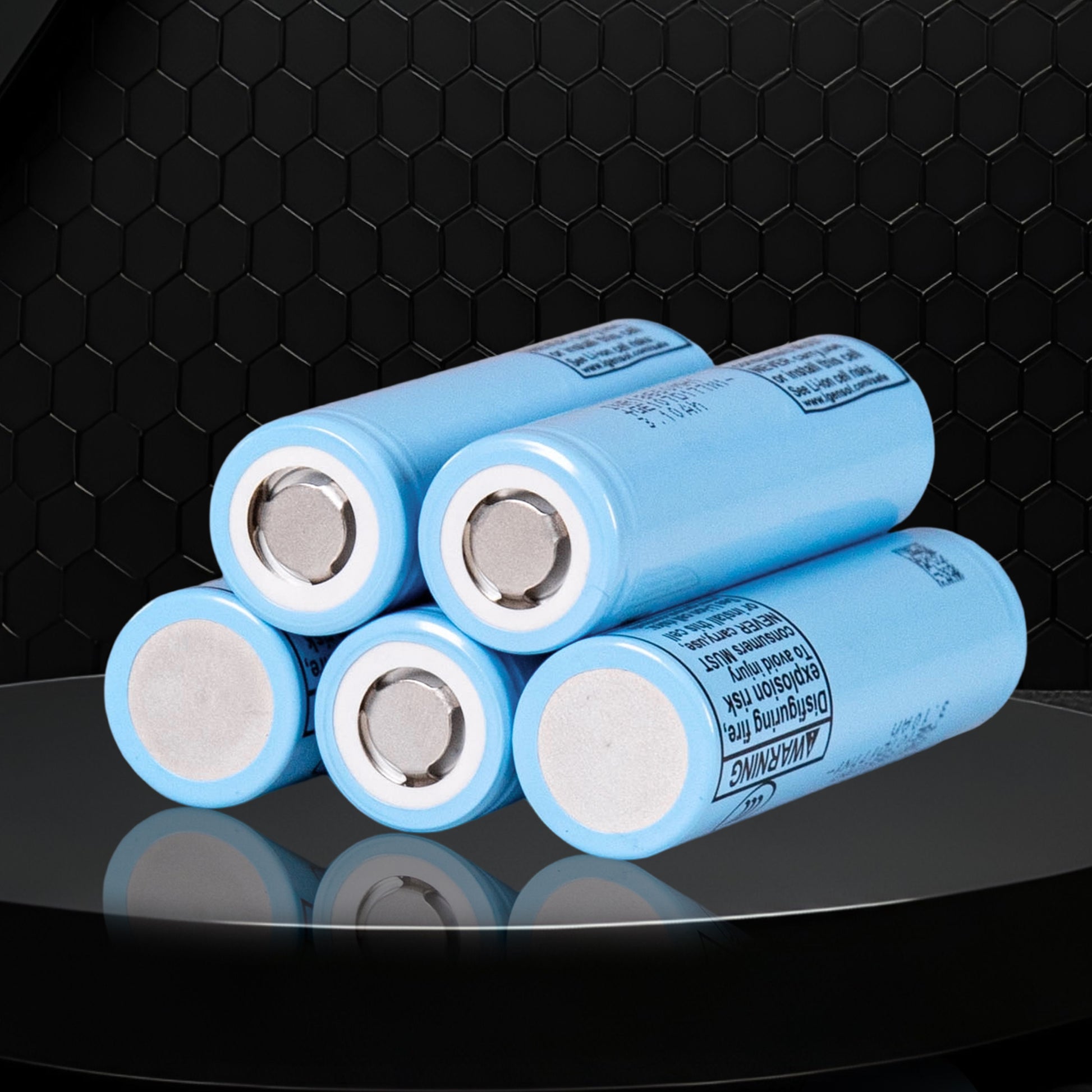

LG INR18650-MH1

LG INR18650-MH1

Technical Specifications

Nominal Voltage: ~3.63 V average
Typical Capacity: 3,200 mAh (minimum 3,100 mAh)
Dimensions: Diameter ~18.4 mm, Height ~65.1 mm
Weight: Approx. 49.0 g (max)

Max Charge Voltage: 4.20 V ± 0.05 V
Standard Charge Current: 0.5 C (≈1,550 mA)
Max Charge Current: 1 C (≈3,100 mA)
Max Continuous Discharge Current: ~10 A
Discharge Cut-off Voltage: 2.50 V
Operating Temperature Range: Charge: 0 °C to 45 °C; Discharge: –20 °C to 60 °C

View full details

Key Performance Highlights

  1. High Energy Density: ~3,200 mAh nominal capacity, optimized for long-runtime applications.
  2. Stable Discharge Performance: Consistent output under moderate load (up to ~10 A).
  3. Excellent Cycle Life: Maintains strong capacity retention across extended charge/discharge cycles.
  4. Low Internal Resistance: Enhances efficiency and minimizes heat generation.
  5. Reliable Safety Design: Built-in protection features and LG’s proven cell chemistry stability.
  6. Wide Application Range: Ideal for e-bikes, power banks, medical devices, robotics, and general energy storage packs.
Get a Quote

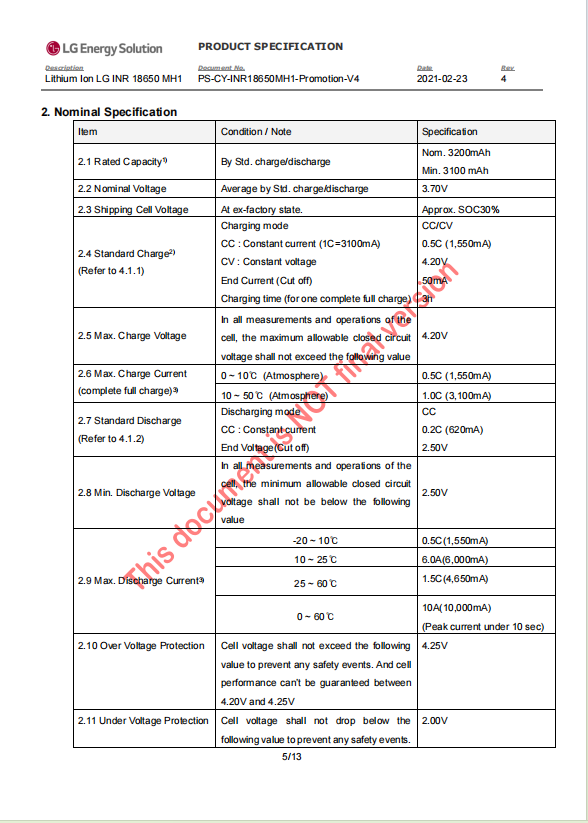

Factory Direct Supply-Guarantee 100% Genuine Cells And Better Price LG INR18650-MH1 battery cell specification

Get a Quote

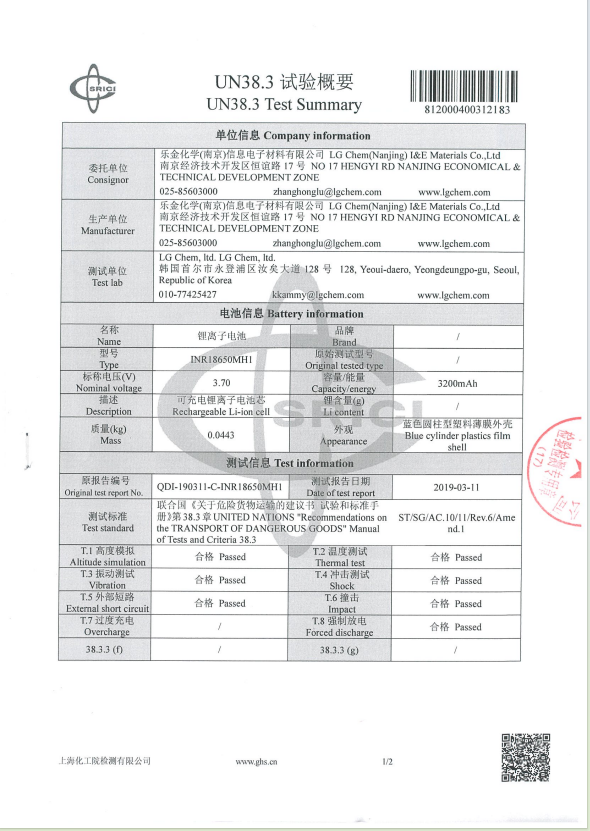

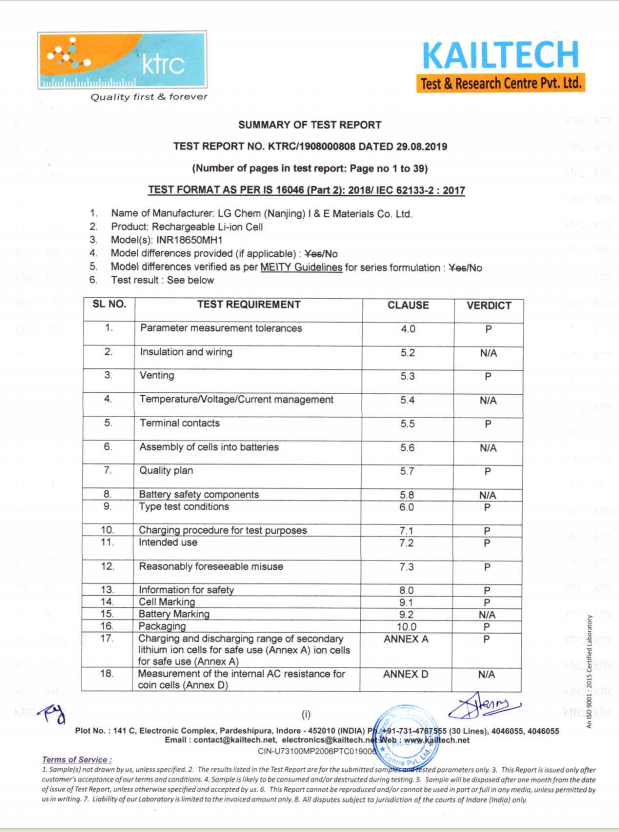

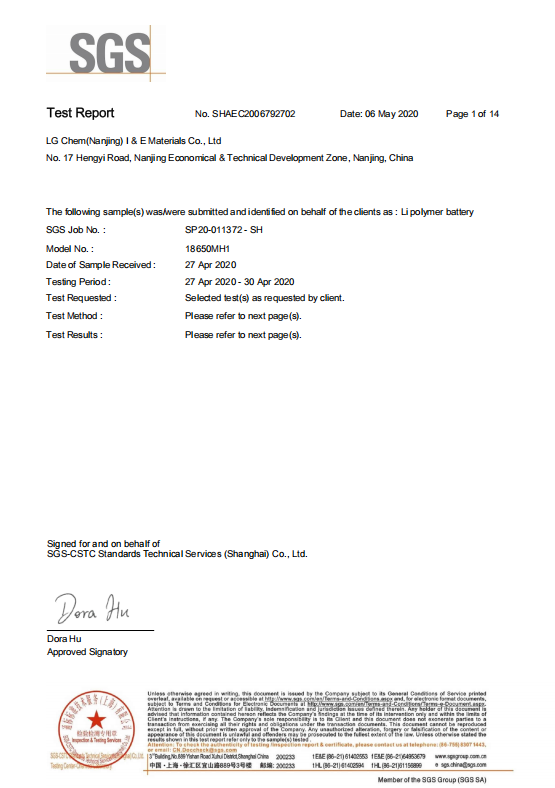

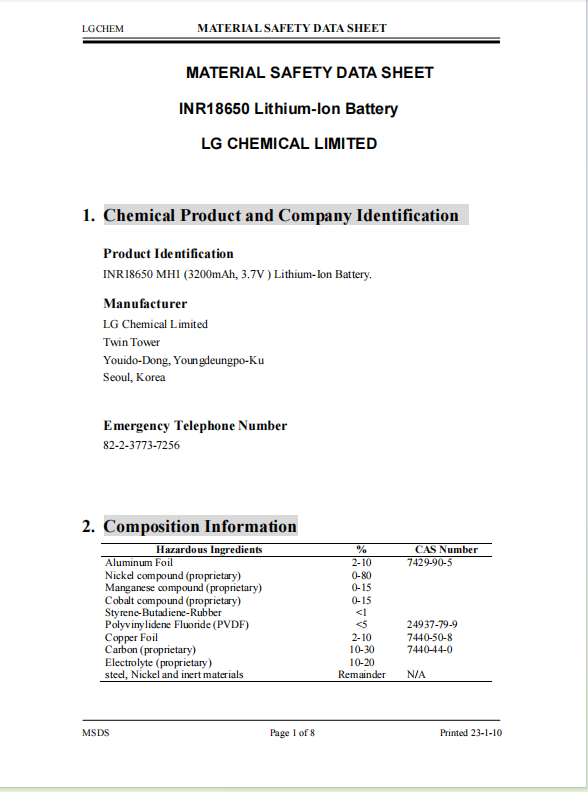

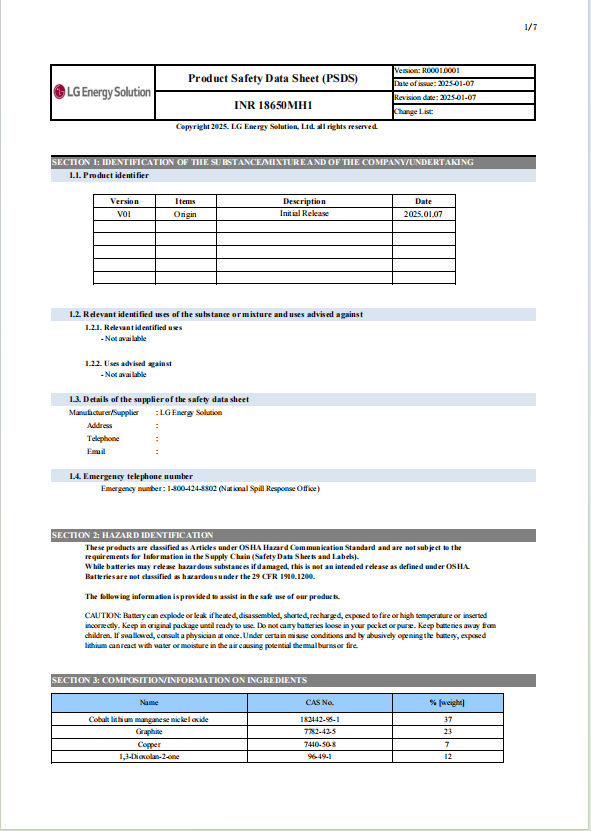

INR18650-MH1 certificatesMSDS, UN38.3, UL, CB, IEC62133, BIS, etc.

Get a Quote

Frequently Asked Questions

What is the nominal capacity of the LG MH1?


The LG MH1 has a nominal capacity of 3,200 mAh, making it one of LG’s higher-capacity 18650 cells.

Is the LG MH1 suitable for high-drain devices?

It supports moderate-drain applications but is not ideal for high-drain systems that require 20–30 A cells.

What applications commonly use the MH1?

E-bikes, medical devices, energy storage systems, power banks, robotics, and general-purpose battery packs.

What is the cycle life of the LG MH1?

The cell offers solid long-term cycle performance, retaining good capacity after hundreds of charge/discharge cycles.

Need the INR18650-MH1 datasheet or more technical info? Send us a message below — we’ll reply within 24 hours.
